Asus

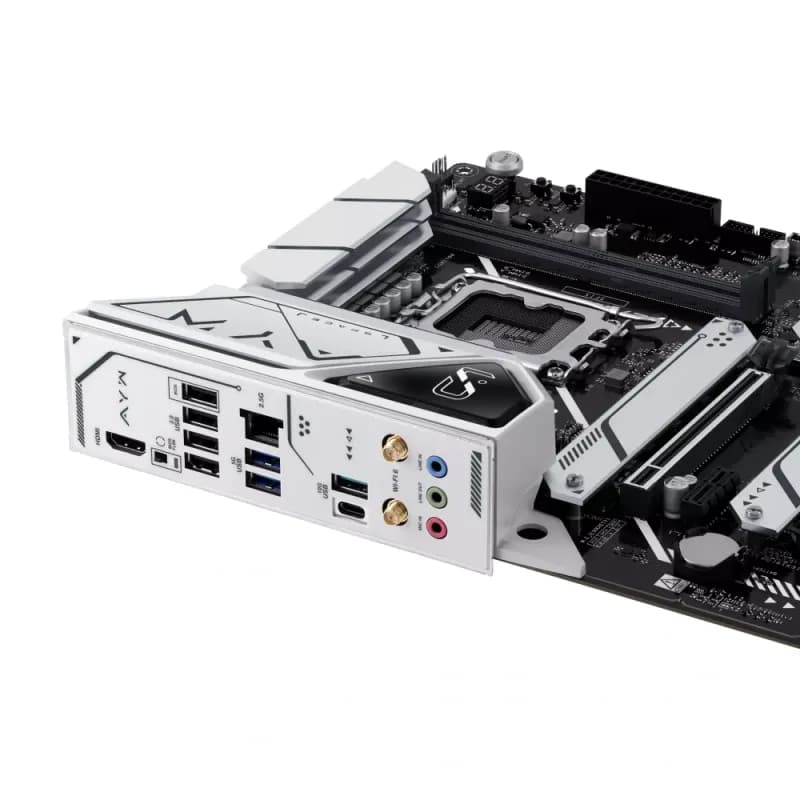

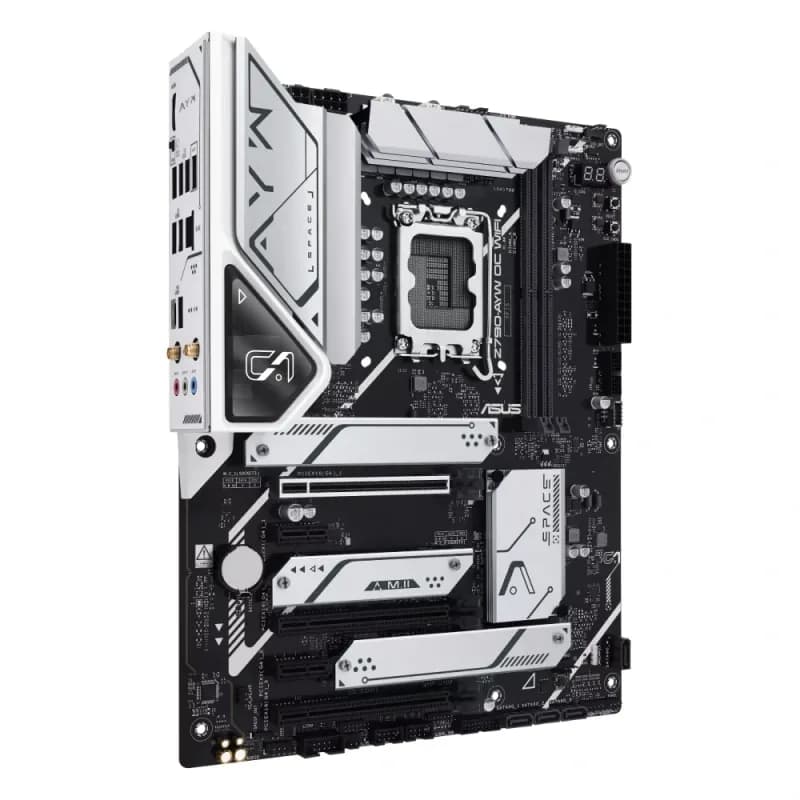

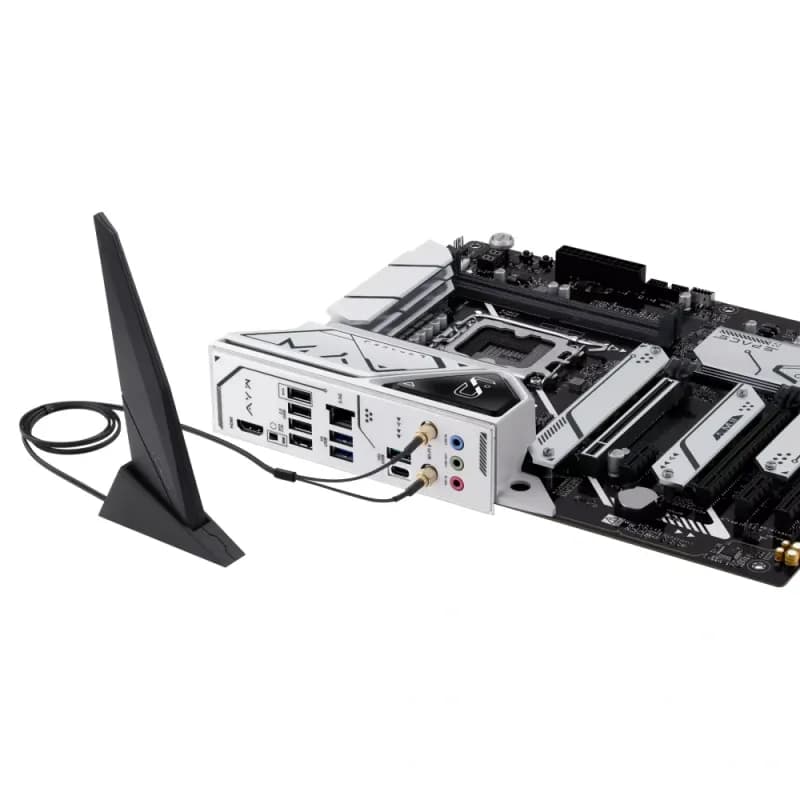

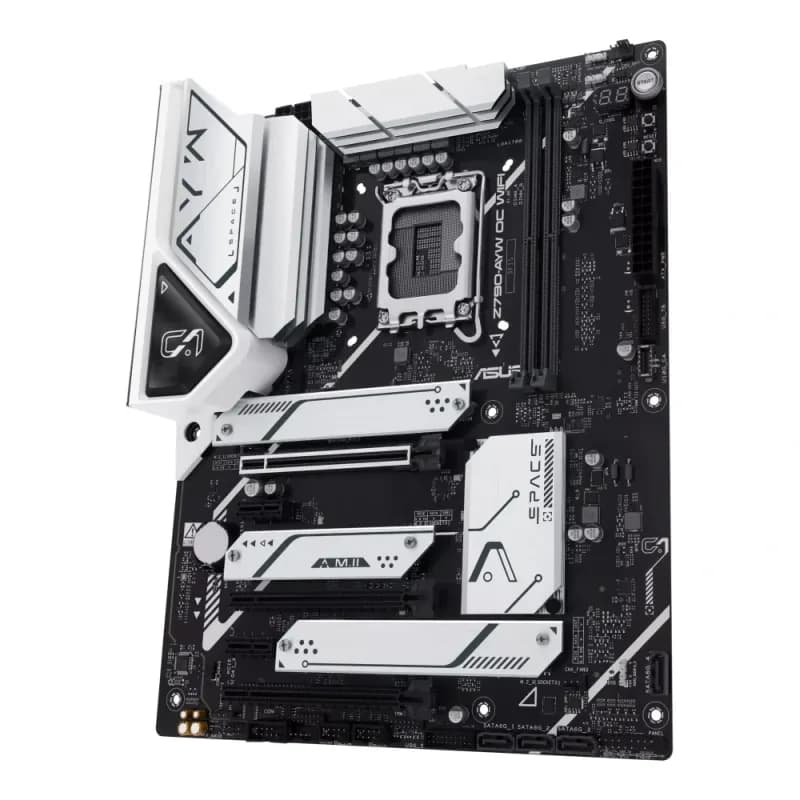

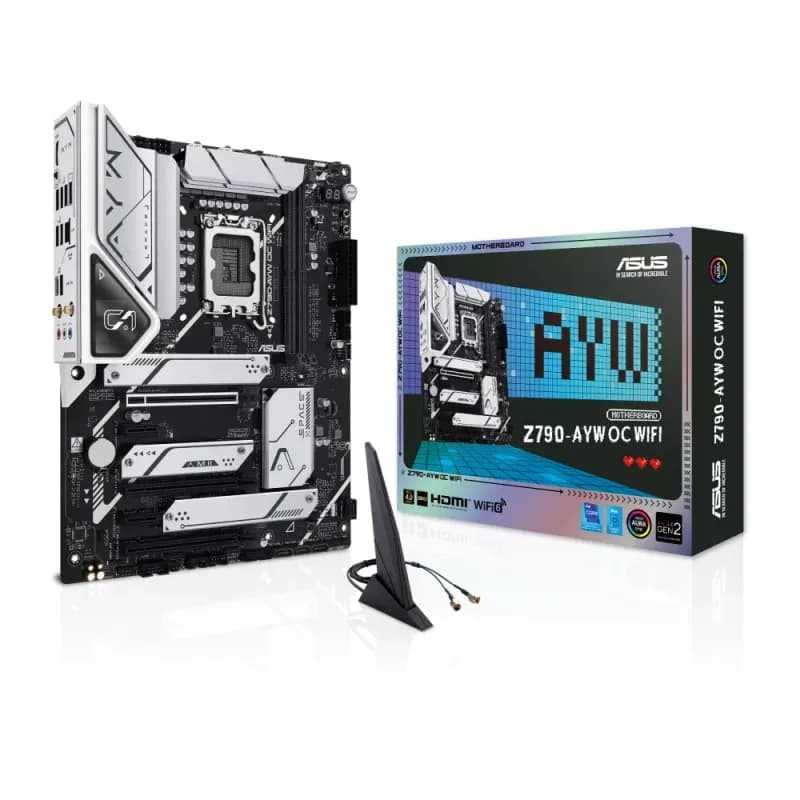

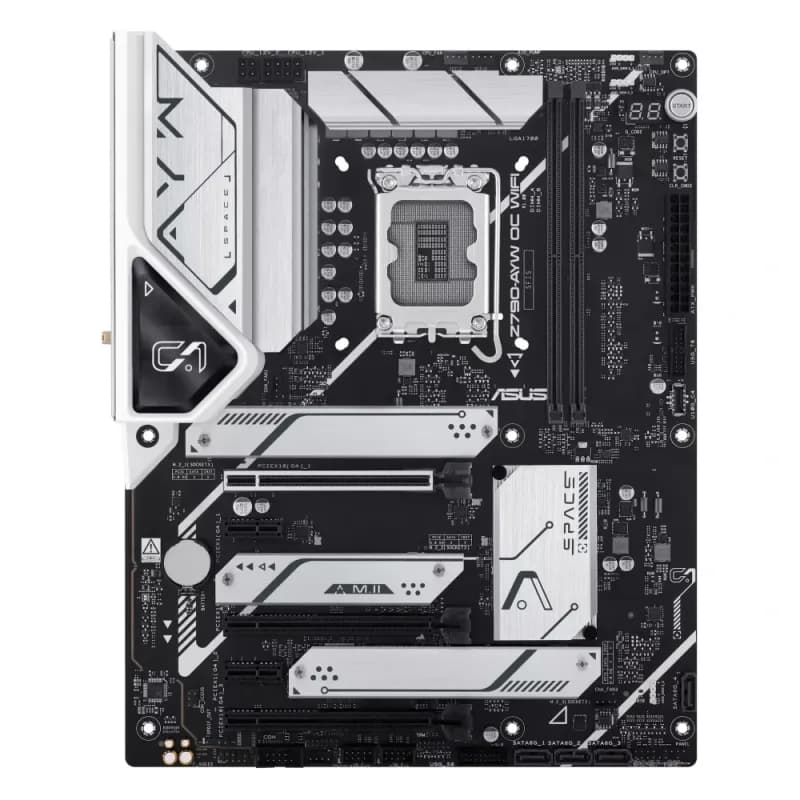

ASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: Z790-AYW OC WIFI
Supported CPU: 14th, 13th & 12th Gen Processors (LGA1700)
Supported RAM: 2 x DIMM, Max. 96GB, DDR5 8200+(OC)
Graphics Output: 1 x HDMI
Features: Realtek 2.5Gb Ethernet and Wi-Fi 6

৳ 39,500

Call for stock

Basic Information

Supported CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

ChipsetIntel Z790 Chipset

BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form FactorATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

PCIIntel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe

M.2 SocketTotal supports 3 x M.2 slots

Memory

TypeDDR5

Slots2 x DIMM slots

Supported MemoryDDR5 8200+(OC) 8000(OC) /7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Maximum Memory96GB

Graphics

Graphics1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1

Connector & Ports

HDMI1 x HDMI 2.1

USB (s)Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. * USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth.

LAN Port (s)1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Wireless Communication moduleWi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3

Supported Storage3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Internal I/O PortsBack Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x Clear CMOS button 1 x Reset button 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4®) Header

TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)

Others

Special FeaturesExtreme OC Kit - Start button ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-Code ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack™ button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers

Bundled SoftwareASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) MyASUS UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty3 years
