GIGABYTE

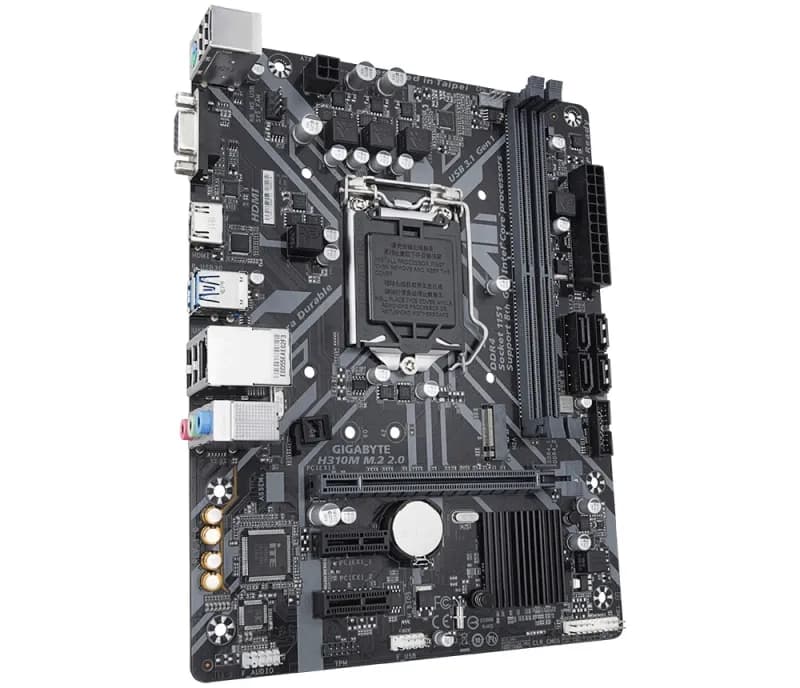

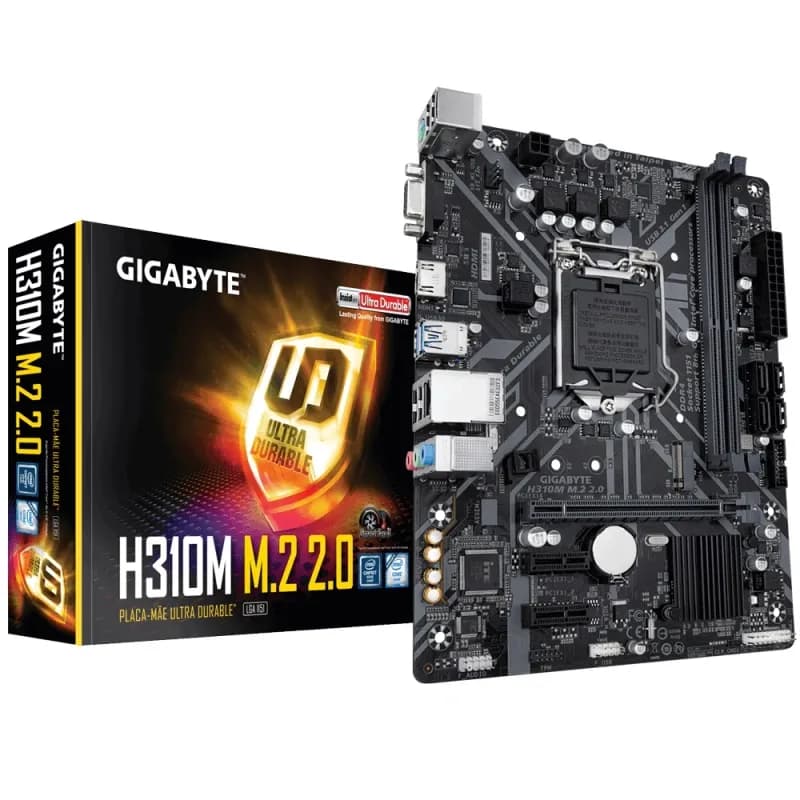

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: H310M
Supports 9th and 8th Gen Intel Core Processors
Chipset: Intel H310 Express Chipset
CEC 2019 Ready
2 x DIMM, Max. 32GB DDR4

৳ 9,500

Call for stock

Basic Information

Supported CPUSupport for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU

ChipsetIntel H310 Express Chipset

BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)

Memory

TypeDual-channel memory architecture

Slots2 x DDR4 DIMM

Supported MemorySupport for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory32 GB

Graphics

GraphicsIntegrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Max Shared Memory1 GB

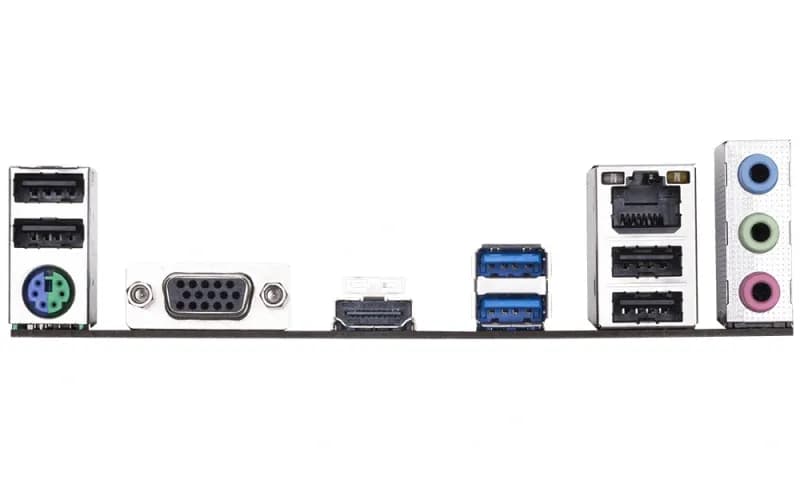

Connector & Ports

HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2.

D-Sub (s)1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

USB (s)4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)

Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors

AudioRealtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel

Internal I/O Ports1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper

TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special FeaturesSupport for APP Center @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install

Warranty Information

Manufacturing Warranty03 Years
