Hikvision

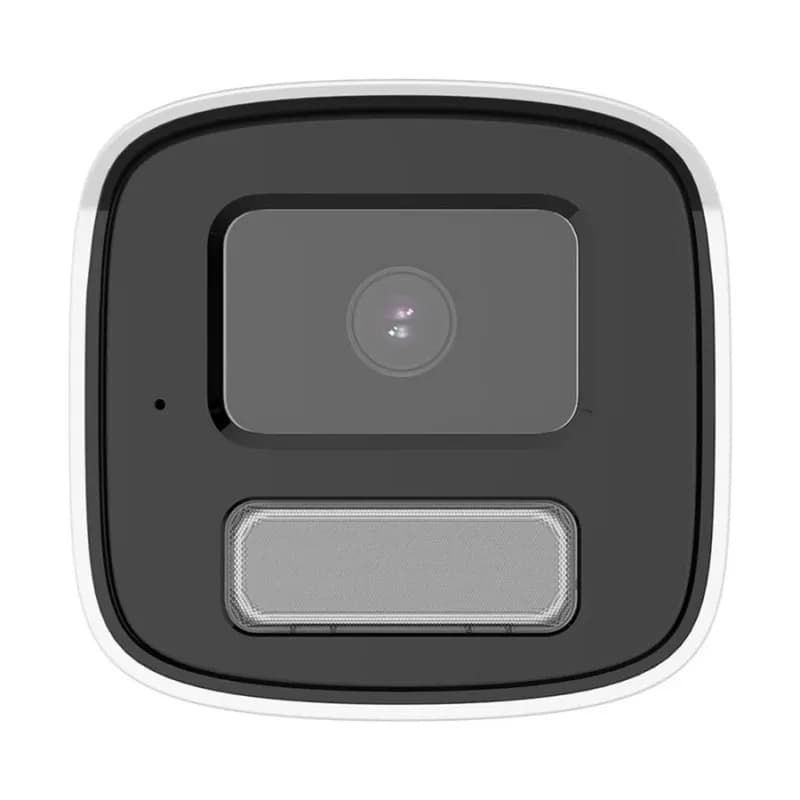

Hikvision DS-2CD1T23G2-LIU 2MP Bullet IP Camera

0.0

(0 Verified Reviews)

Key Features

Model: DS-2CD1T23G2-LIU
Image Sensor: 1/2.9" Progressive Scan CMOS
Resolution: Max. 2MP (1920 × 1080) at 25/30 fps.
Lens: 4 mm; 6 mm, Aperture: F1.6, IR Distance: 50m
Features: PoE, DWDR, 3D DNR, Smart Detection, IP67

৳ 4,410

Call for stock

Camera

Image Sensor1/2.9" Progressive Scan CMOS

Resolution1920 × 1080

Shutter Speed1/3 s to 1/100,000 s

Day & NightIR cut filter

Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

SNR (dB)≥ 52 dB

Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°

Lens

Lens TypeFixed focal lens

Lens MountM12

Focal Length4 and 6 mm optional

ApertureF1.6

Field of View4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° 6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°

Iris TypeFixed

DORI Distance4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m

Illuminator

IR LEDsIR, White Light

IR DistanceUp to 50 m

IR Wavelength850 nm

Video

Video CompressionMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Bit Rate32 Kbps to 8 Mbps

Day/NightAuto,Schedule

BLCYes

HLCYes

WDRDigital WDR

Gain ControlYes

Region of Interest (ROI)1 fixed region for main stream

MirrorYes

Privacy Masking4 programmable polygon privacy masks

Audio

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Built-in MicrophoneYes

Environment Noise FilteringYes

Audio Sampling Rate8 kHz/16 kHz

Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

OthersAudio Type: Mono sound

Storage

Card SlotBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Network

ProtocolTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI ,SDK

User/HostUp to 32 users 3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect

Web BrowserPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Alarm

Basic DetectionMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

OthersLinkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Environment

Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)

Operating HumidityHumidity 95% or less (non-condensing)

Storage Temperature-30 °C to 60 °C (-22 °F to 140 °F)

Storage HumidityHumidity 95% or less (non-condensing)

Water ProtectionIP67

Power

Power Supply12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W

PoE StandardIEEE 802.3af

Physical Information

Casing MaterialMetal & Plastic

Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")

WeightApprox. 580 g (1.3 lb.)

Warranty Information

Warranty1 Year
