MSI

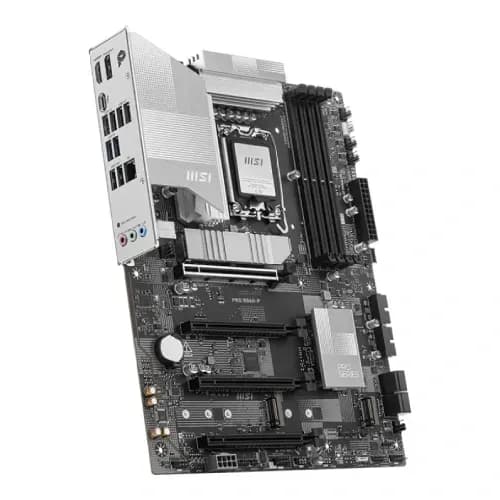

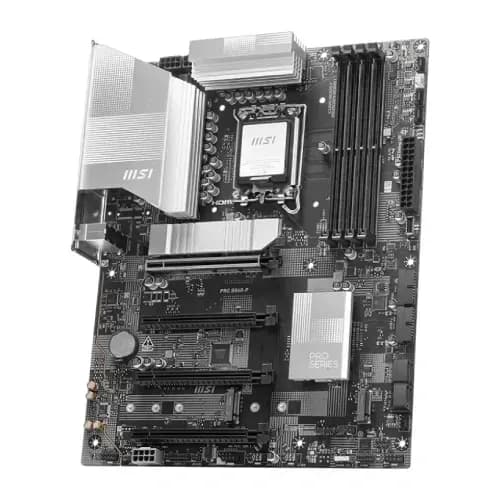

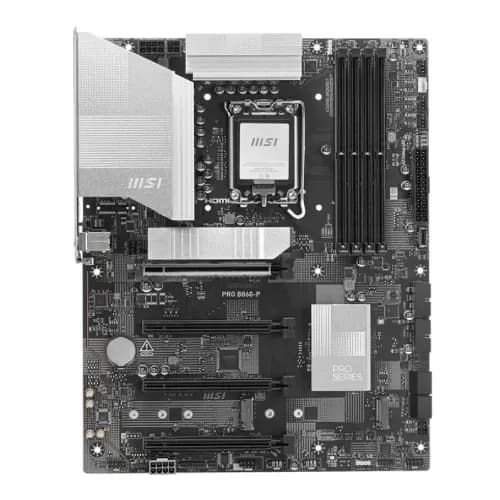

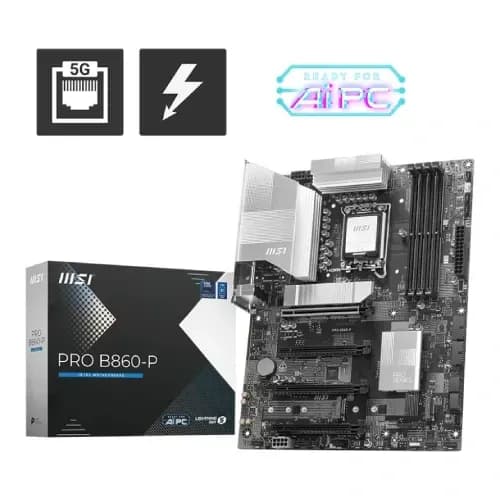

MSI PRO B860-P LGA 1851 ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: B860-P
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2, Realtek 8126 5Gbps LAN

৳ 26,500

Call for stock

Basic Information

Supported CPUSupports Intel Core Ultra Processors (Series 2)

ChipsetINTEL B860

Form FactorATX (243.84mmx304.8mm)

AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

M.2 Socket3x M.2

Memory

TypeDDR5

Slots4

Supported Memory4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s

Maximum MemoryMaximum Memory Capacity 256GB

Graphics

Graphics1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Connector & Ports

HDMI1x HDMI 2.1

Display Port (s)1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*

USB (s)4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)

LAN Port (s)Realtek 8126 5Gbps LAN

Supported Storage3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Audio1x Front Audio (JAUD)

Internal I/O Ports1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty3 Year warranty
