MSI

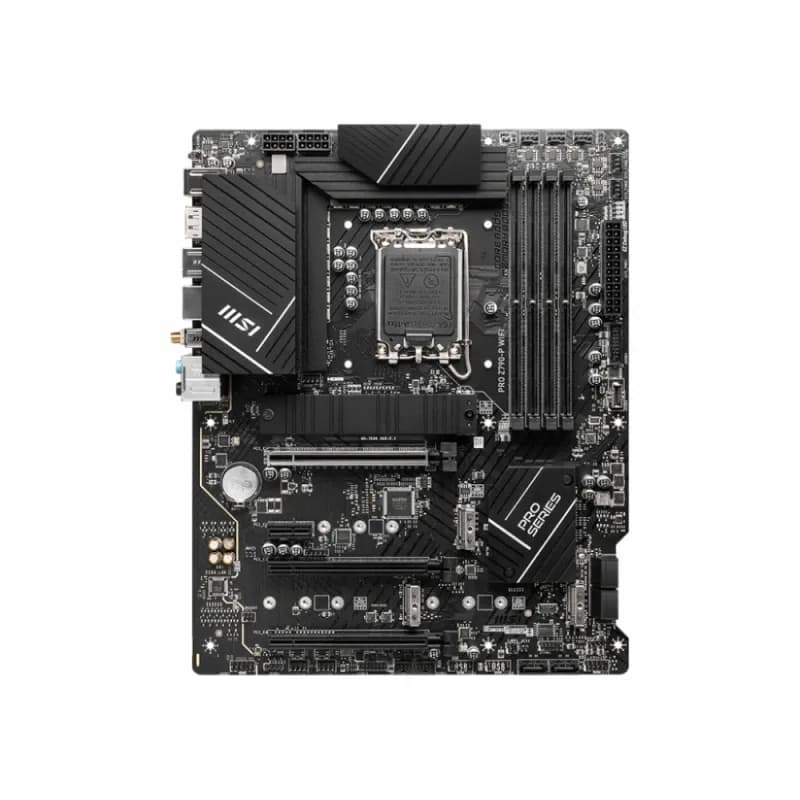

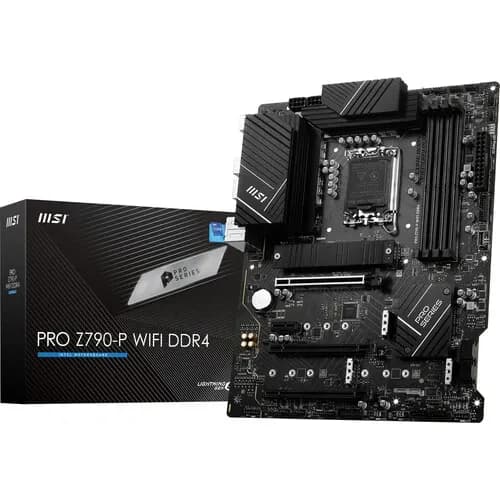

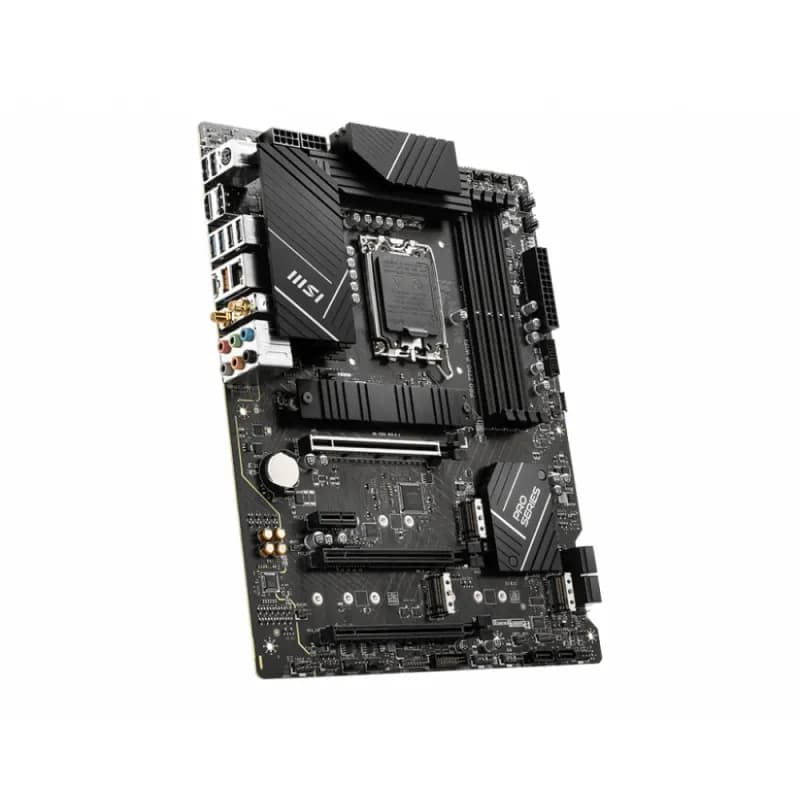

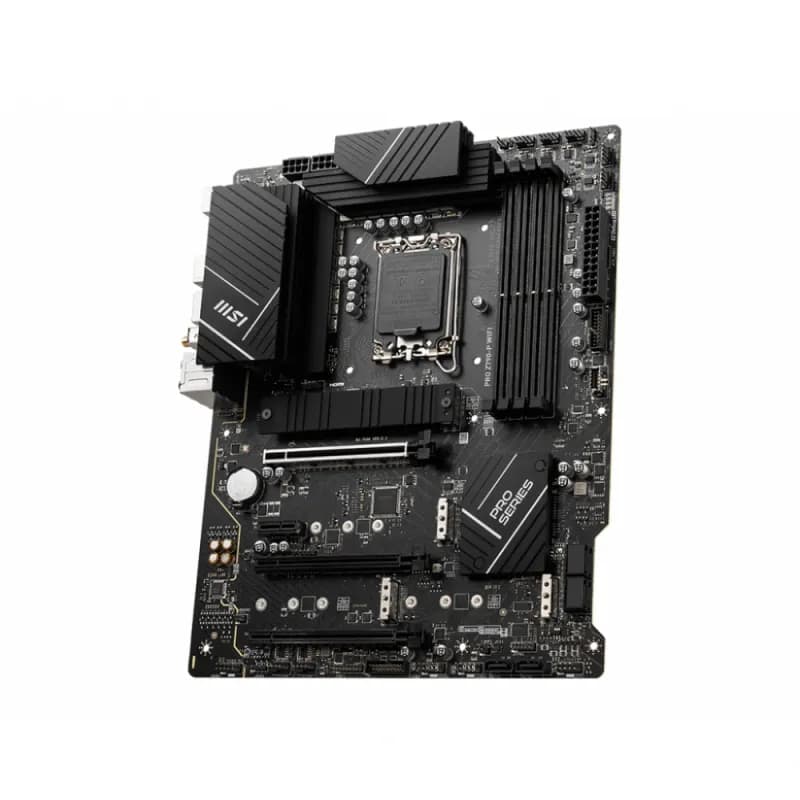

MSI PRO Z790-P WIFI DDR4 ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: PRO Z790-P WIFI DDR4
Supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
2.5G LAN with Wi-Fi 6E Solution

৳ 28,899

Call for stock

Basic Information

Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700

ChipsetINTEL Z790

Form FactorATX Form Factor 243.84mmx304.8mm

AudioRealtek ALC897 Codec 7.1-Channel High-Definition Audio

Expansion Slots

PCI3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)

M.2 Socket4x M.2 slot

Memory

TypeDDR4

Supported Memory4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)

Maximum Memory128GB

Graphics

Graphics1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz

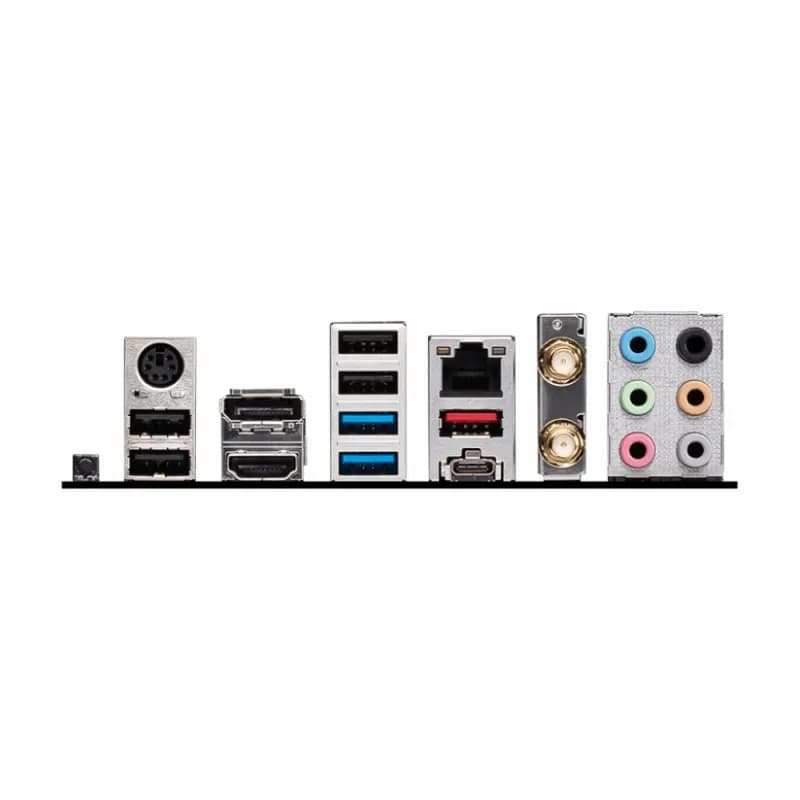

Connector & Ports

HDMI1x HDMI 2.1

Display Port (s)1x DisplayPort 1.4

USB (s)4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s)Intel 2.5Gbps LAN

Wireless Communication moduleIntel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA

Supported Storage4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port

Audio1x Front Audio (JAUD)

Internal I/O Ports1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Others

Special FeaturesLED FEATURE: 4x EZ Debug LED

Warranty Information

Manufacturing Warranty3 years
