HDMI1x HDMI
Display Port (s)1 x DisplayPort 1.4
USB (s)1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
LAN Port (s)2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Supported StorageCPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

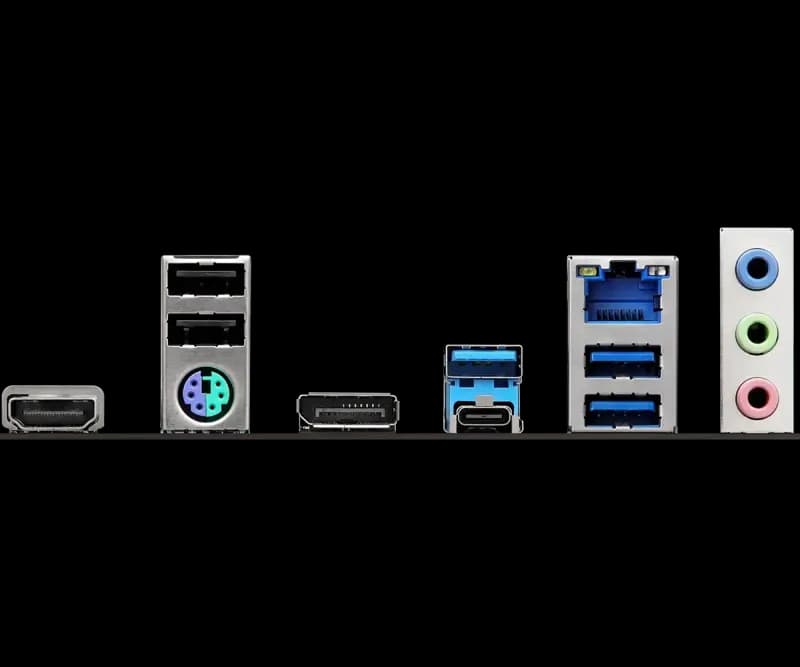

Internal I/O Ports- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )- 1 x SPI TPM Header
