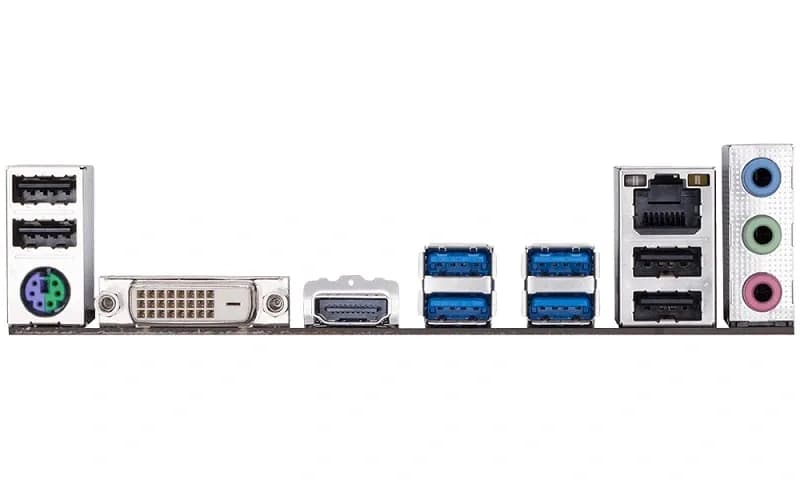

HDMI1 x HDMI port
USB (s)Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
AudioRealtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
