Supported CPUSupports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
ChipsetAMD B840
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form FactorMicro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCICPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 SocketCPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Memory
TypeDual Channel DDR5 Memory Technology
Slots2 x DDR5 DIMM Slots
Supported MemorySupports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory128GB
Graphics
GraphicsIntegrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Connector & Ports
HDMI1 x HDMI 2.1 TMDS/FRL 8G Compatible
D-Sub (s)1 x D-Sub
USB (s)CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
Supported StorageCPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors
RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

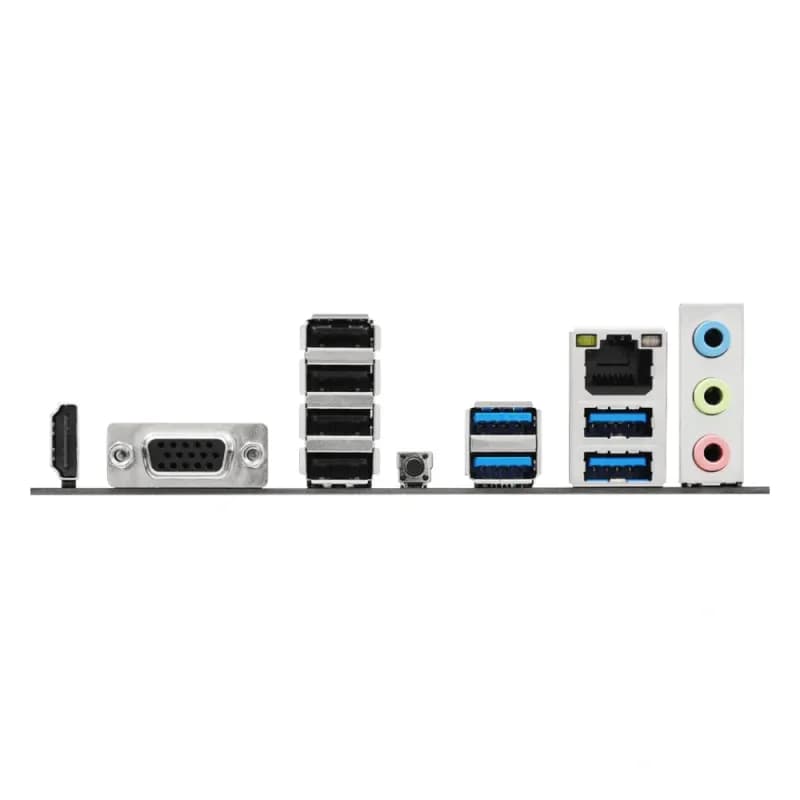

Internal I/O Ports- 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special FeaturesSuperb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Bundled SoftwareSoftware - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
