Data Rate802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 800 Mbps WiFi 5 (802.11ac) : up to 1734 Mbps
AntennaExternal 3 dBi dipole antenna x 4
ButtonWPS Button, Reset Button, Power Button, Power Switch, USB eject
Frequency2.4G Hz / 5 GHz
WirelessIPv6 Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x4, 5GHz x4 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2-Personal WPS WiFi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming Explicit beamforming
Network StandardIEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac)
EncryptionWi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

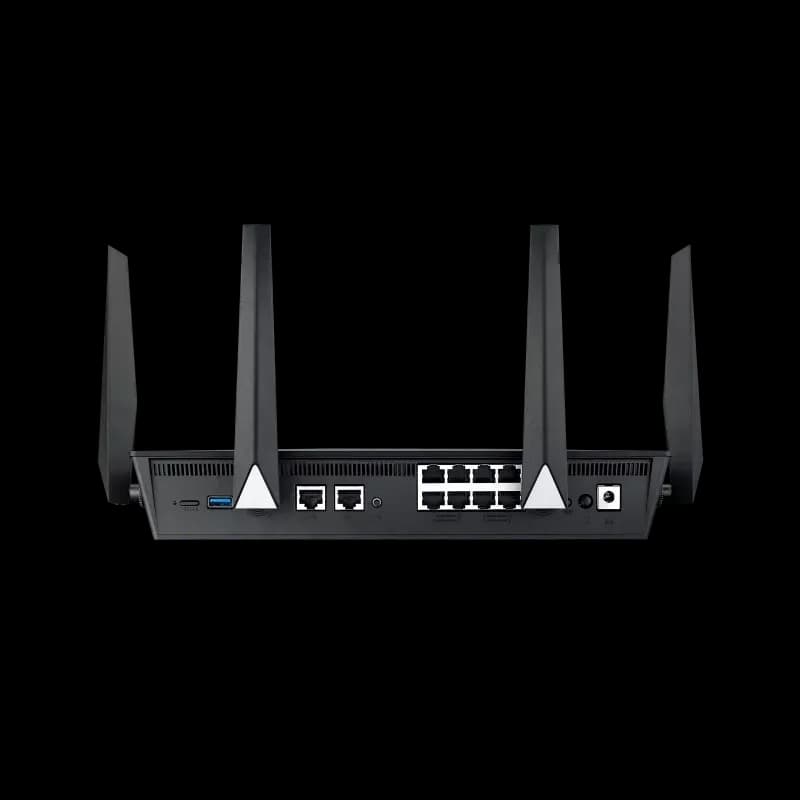

PortsRJ45 for Gigabits BaseT for WAN x 2, RJ45 for Gigabits BaseT for LAN x 8 USB 3.0 x 2 M.2 SATA(SOCKET3) x 1
OthersLED Indicator: Power x 1 LAN x 8 Wi-Fi x 2 LAN x 2 Fail-over x 1 SSD x 1 AiProtection: AiProtection Pro Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking Parental Control: Parental Control Customized Internet schedule Traffic Control: Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule: 32 Traditional QoS Maximum Traditional QoS rule: 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period: Daily, Weekly, Monthly Website history WAN: Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule: 64 Port triggering Maximum port triggering rule: 32 DMZ DDNS NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay VPN: VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP USB application: File System: HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle HDD hibernation Safely Remove disk AiCloud AiDisk Time Machine Samba Server FTP Server Shared Folder privileges Administration: Operating mode: Access point, Router Operating system: ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter: 64 Maximum Firewall network service filter: 32 Maximum Firewall URL filter: 64 SSH Wake on LAN (WOL) Configuration backup and restore Diagnosis tools
Operating System SupportASUSWRT Free OS upgrade
