Asus

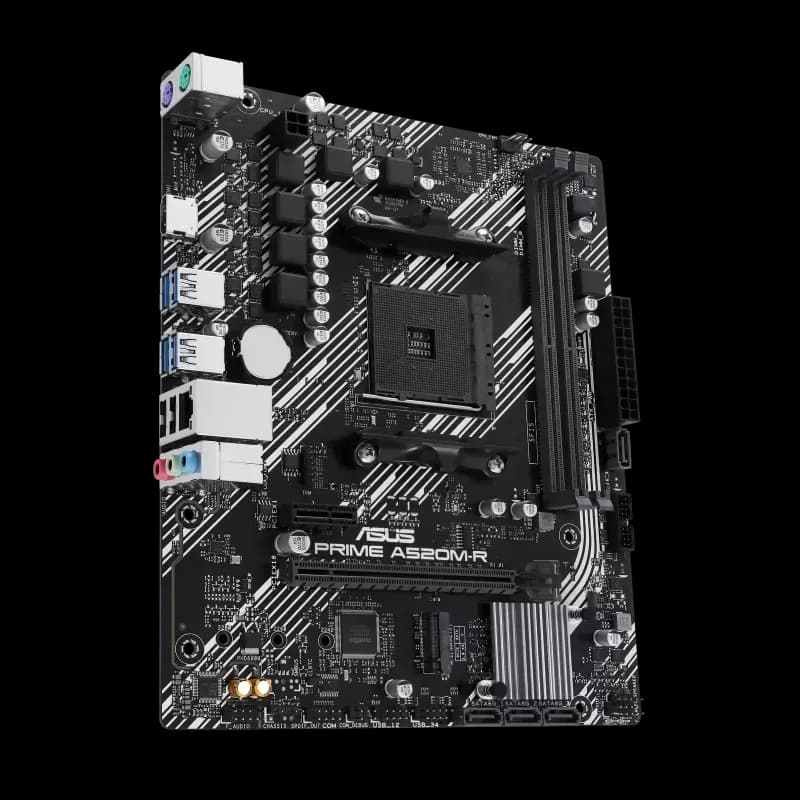

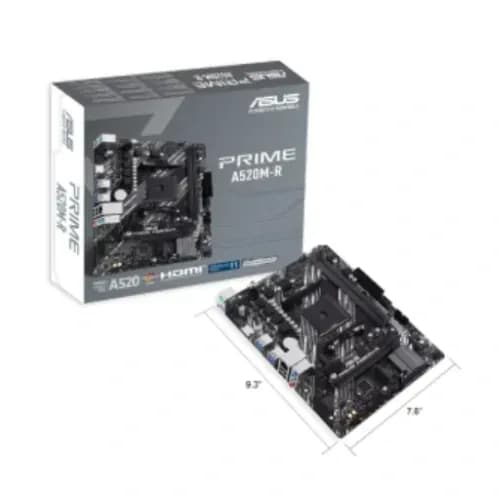

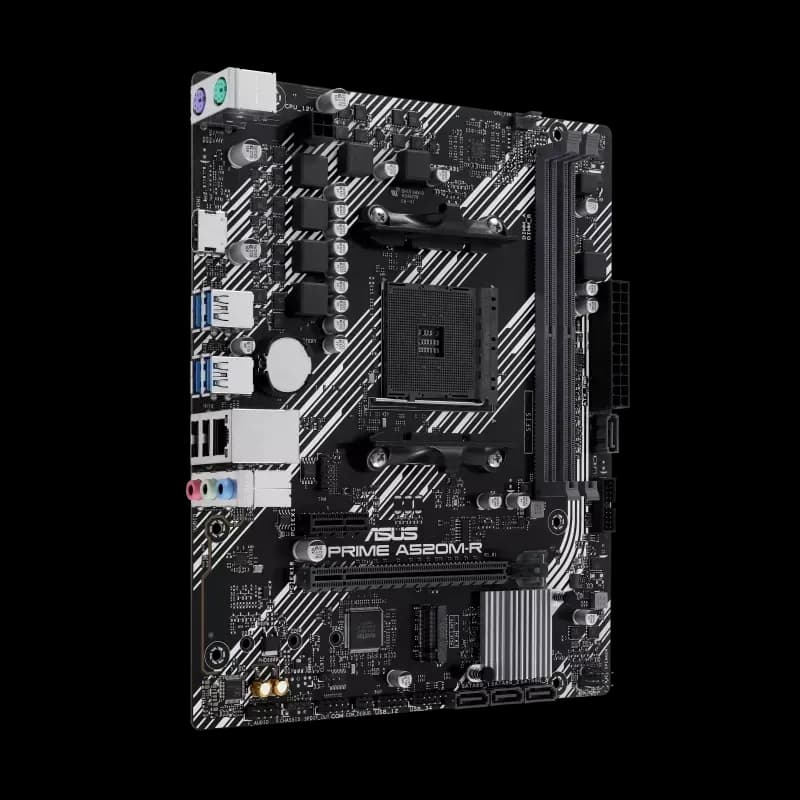

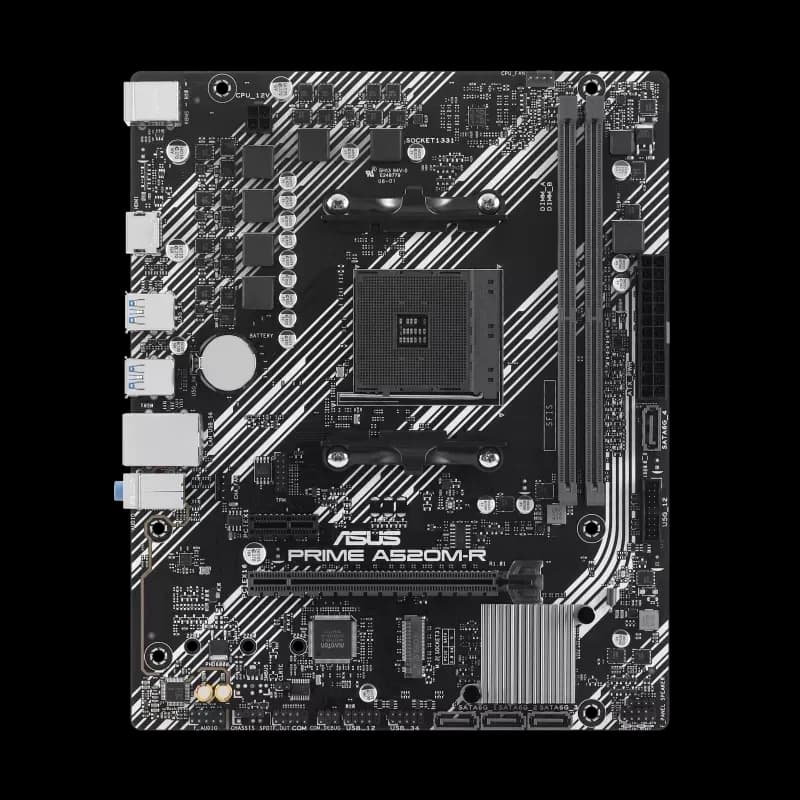

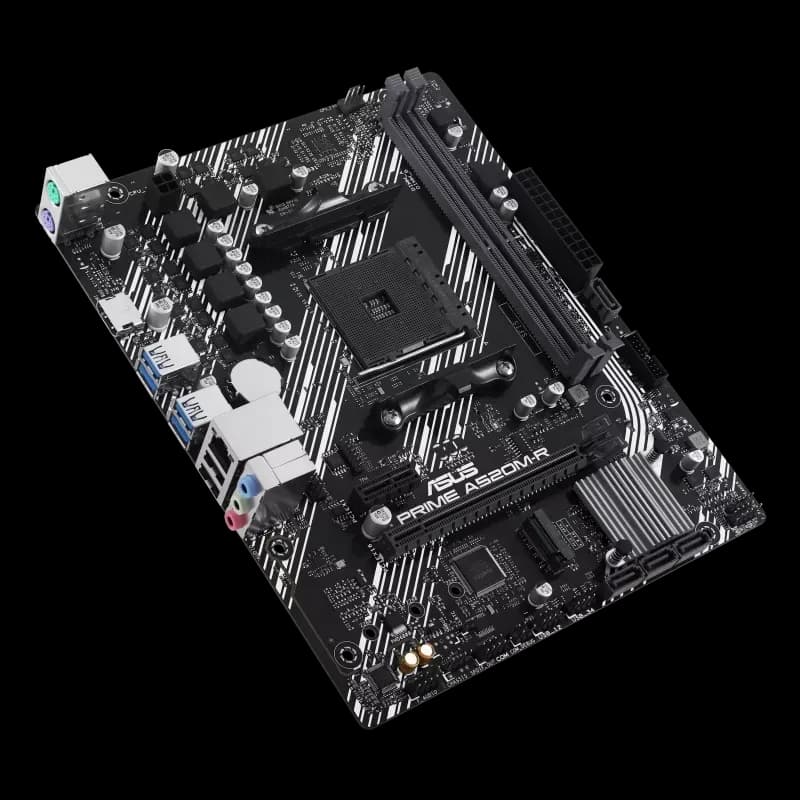

Asus PRIME A520M-R AM4 micro ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: PRIME A520M-R
CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series
Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC)
Output: 1 x HDMI
Features: 1 x M.2, 4 x SATA 6Gb/s ports

৳ 8,700

Call for stock

Basic Information

Supported CPUAMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

ChipsetA520

BIOS128 Mb Flash ROM, UEFI AMI BIOS

Form Factormicro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCIAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot

M.2 SocketSupports 1 x M.2

Memory

TypeDDR4

Slots2 x DIMM

Supported MemoryDDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU

Maximum Memory64GB

Graphics

Graphics1 x HDMI port** * Graphics specifications may vary between CPU types

Connector & Ports

HDMI1 x HDMI

USB (s)Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

LAN Port (s)1 x Realtek 1Gb Ethernet ASUS LANGuard

Supported Storage1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Audio3 x Audio jacks

Internal I/O PortsFan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)

Others

Special FeaturesASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design

Bundled SoftwareASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty03-Year Warranty
