Maximum Memoryup to 192 GB of memory (a single socket can support up to 48 GB of memory)
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution
Connector & Ports
HDMI1x HDMI
Display Port (s)1x DisplayPort
LAN Port (s)RTL8125 2.5Gbit network card
Supported StorageA total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
RAIDSupport the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

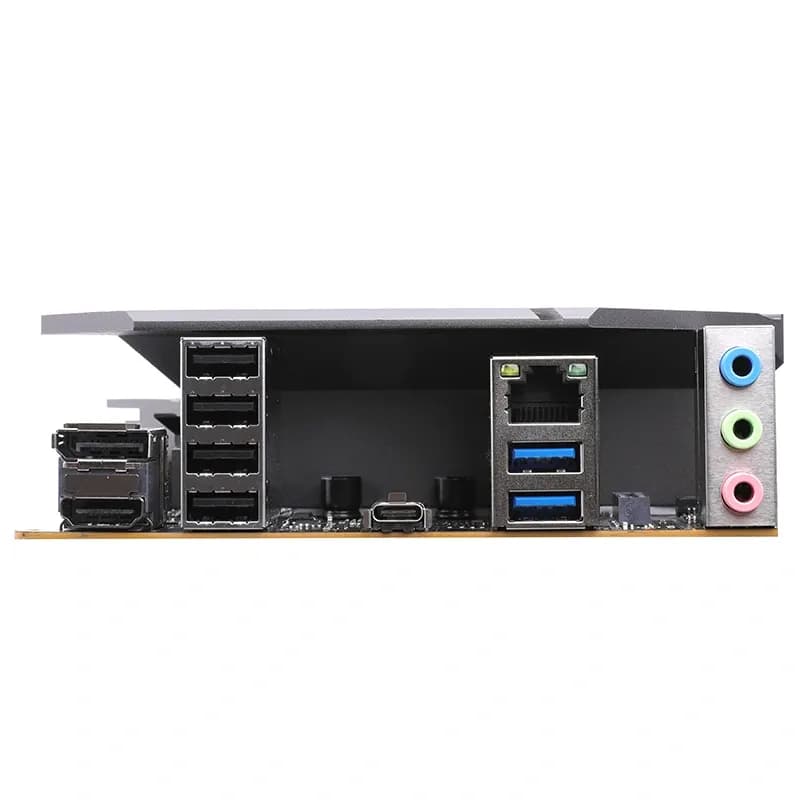

Internal I/O PortsRear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper
