HDMI1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
Display Port (s)1×DP 1.2 interface, supporting up to 4K 60Hz resolution
USB (s)4×USB 2.0 interfaces 2×USB 3.2 Gen 1 5Gbps Type-A interfaces
LAN Port (s)1×Gigabit network interface RTL8111K 1000M LAN
Wireless Communication moduleWiFi 6
Supported Storage2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
RAIDsupporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices
AudioRealtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

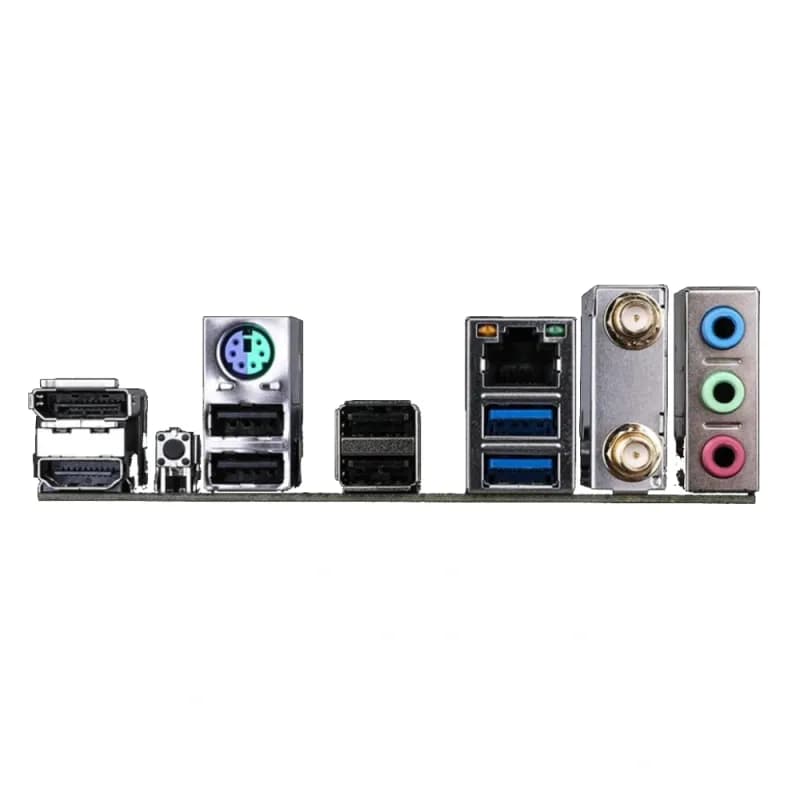

Internal I/O PortsRear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1个PS/2 interface -1×Gigabit network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×CPU fan pin -2×System fan pins -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin
