Dahua

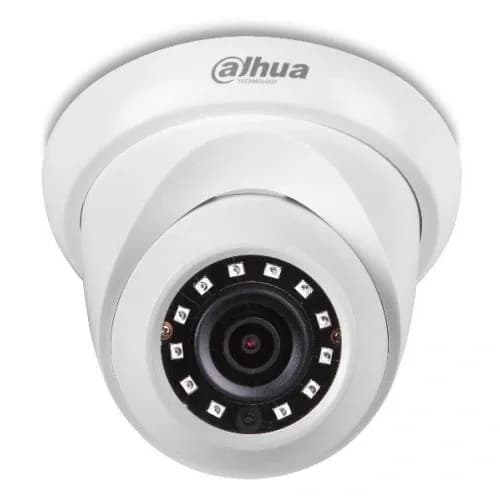

Dahua DH-IPC-HDW1230S-S5 2MP IR Dome Network Camera

0.0

(0 Verified Reviews)

Key Features

Model: IPC-HDW1230SP 2MP
Image Sensor: 1/2.8” Progressive CMOS
Resolution: Max. 2MP (1920 × 1080) at 25/30 fps.
Lens: 2.8mm, Aperture: F2.0, IR Distance: 30 meters
Features: PoE, DWDR, 3D DNR, Smart Detection, IP67

৳ 4,200

Call for stock

Camera

Image Sensor1/2.8" CMOS

Resolution1920 (H) × 1080 (V)

Shutter SpeedAuto/Manual 1/3 s–1/100000 s

Day & NightAuto (ICR)/Color/B/W

Min. Illumination0.01 Lux @F2.0

SNR (dB)>56 dB

Angle AdjustmentPan: 0° to 355° Tilt: 0° to 78° Rotation: 0° to 360°

OthersScanning System: Progressive ROM: 16 MB RAM: 64 MB

Lens

Lens TypeFixed-focal

Lens MountM12

Focal Length2.8 mm; 3.6 mm

Aperture2.8 mm: F2.0 3.6 mm: F2.0

Field of View2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°

Iris TypeFixed

Close Focus Distance2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft)

DORI Distance2.8 mm: 38.6 m(126.6 ft), 15.4 m(50.5 ft), 7.7 m( 25.3 ft), 3.9 m(12.8 ft) 3.6 mm: 49.7 m(163.1 ft), 19.9 m (65.3 ft), 9.9 m(32.5 ft), 5.0 m(16.4 ft)

Illuminator

IR LEDs12 (IR LED)

IR Distance30 m (98.4 ft)

Illuminator ControlAuto/Manual

Video

Video CompressionH.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Resolution1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Main Stream1920 × 1080 (1 fps–25/30 fps)

Sub Stream704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)

Smart CodecSmart H.265+/Smart H.264+

Video Frame RateMain Stream:1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)

Stream Capability2 streams

Bit Rate ControlCBR/VBR

Video Bit RateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps

Day/NightAuto (ICR)/Color/B/W

BLCYes

HLCYes

WDRDWDR

Gain ControlAuto/Manual

Noise Reduction3D NR

Region of Interest (ROI)Yes (4 areas)

MirrorYes

Privacy Masking4 areas

Storage

Network StorageFTP

Network

ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

InteroperabilityONVIF (Profile S/Profile T); CGI; P2P; Genetec

APIYes

User/Host6 (Total bandwidth: 36 M)

ClientIOS; Android

Web BrowserIE Chrome Firefox

AppSmart PSS; DSS; DMSS

Interface

Network InterfaceRJ-45 (10/100 Base-T)

Alarm

General AlarmNetwork disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

Environment

Operating Temperature-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature-40°C to +60°C (-40°F to +140°F)

Water ProtectionIP67

Power

Power Supply12V DC/PoE (802.3af)

PoE Standard802.3af

Power ConsumptionBasic power consumption:1.5W (12V DC); 3.3W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.3W (12V DC); 4.4W (PoE)

Physical Information

Casing MaterialInner core: Metal Cover: Plastic Decoration ring: Plastic Pedestal: Plastic

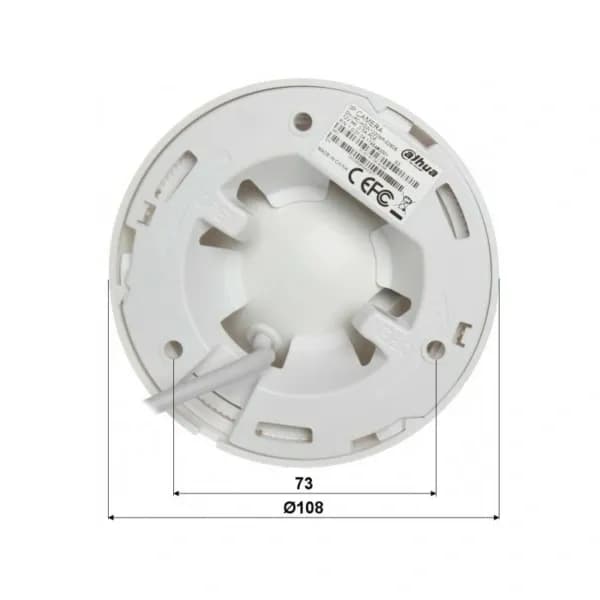

Dimension84.9 mm × Φ108 mm (3.3" × Φ4.3")

WeightNet Weight: 0.26 kg (0.5 lb) Gross Weight: 0.39 kg (0.8 lb)

Warranty Information

Warranty1 Year
