MSI

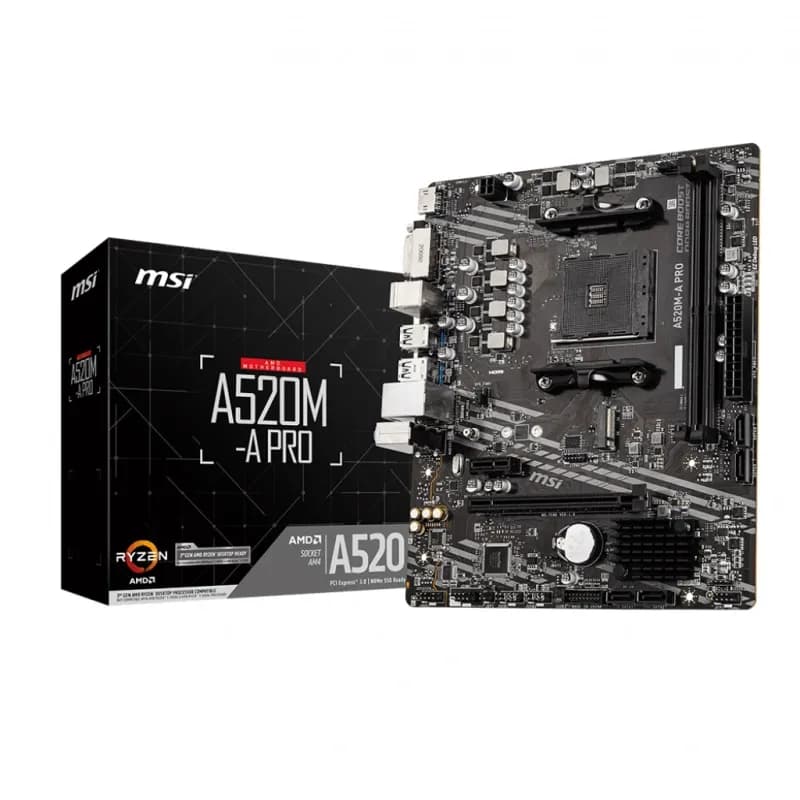

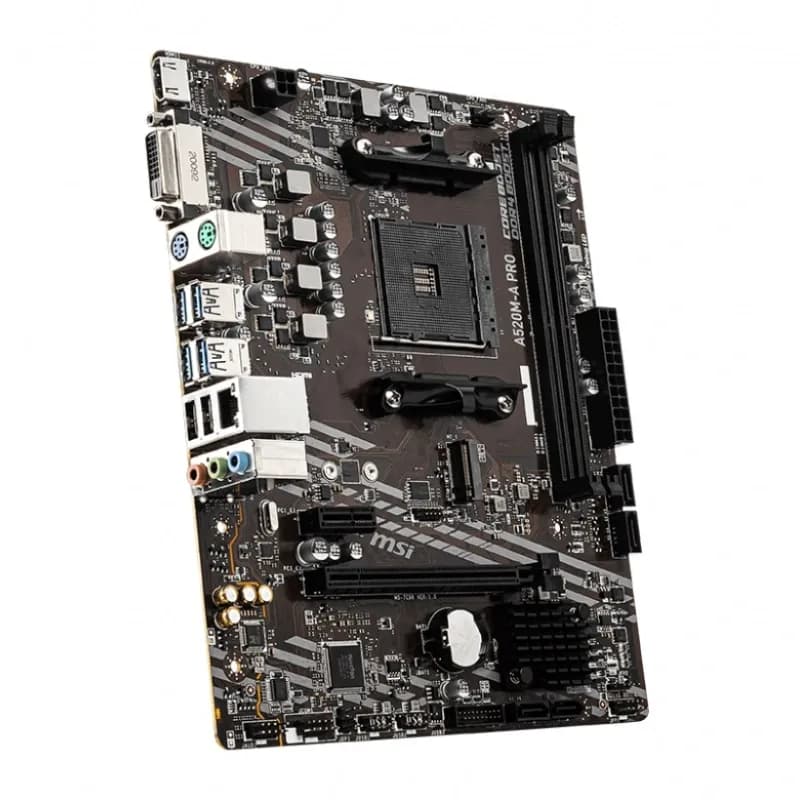

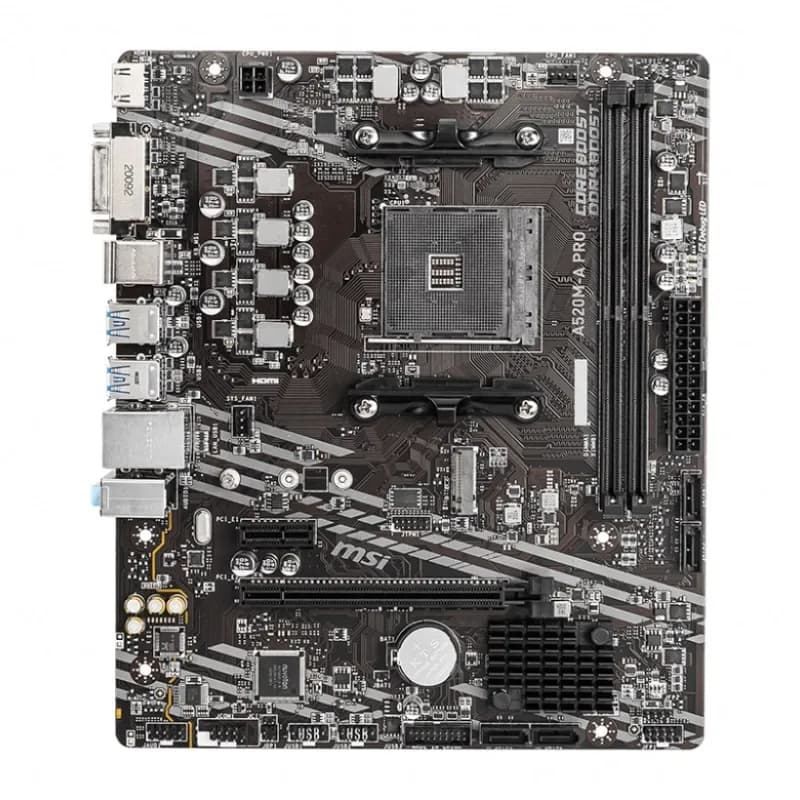

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: MSI A520M-A Pro
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
PCB with 2OZ Thickened Copper
Supports up to 4600(OC) MHz RAM
Core Boost, Turbo M.2 & Audio Boost

৳ 7,200

Call for stock

Basic Information

Supported CPUAMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

ChipsetAMD B520

Form FactorMicro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Expansion Slots

PCI1x PCIe 3.0 x1 slot 1x PCIe x16 slot

M.2 Socket1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

Memory

TypeDual-channel memory architecture

Slots2x DDR4 memory slots

Supported MemorySupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Maximum Memory64GB

Graphics

Graphics1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Max Shared Memory16GB

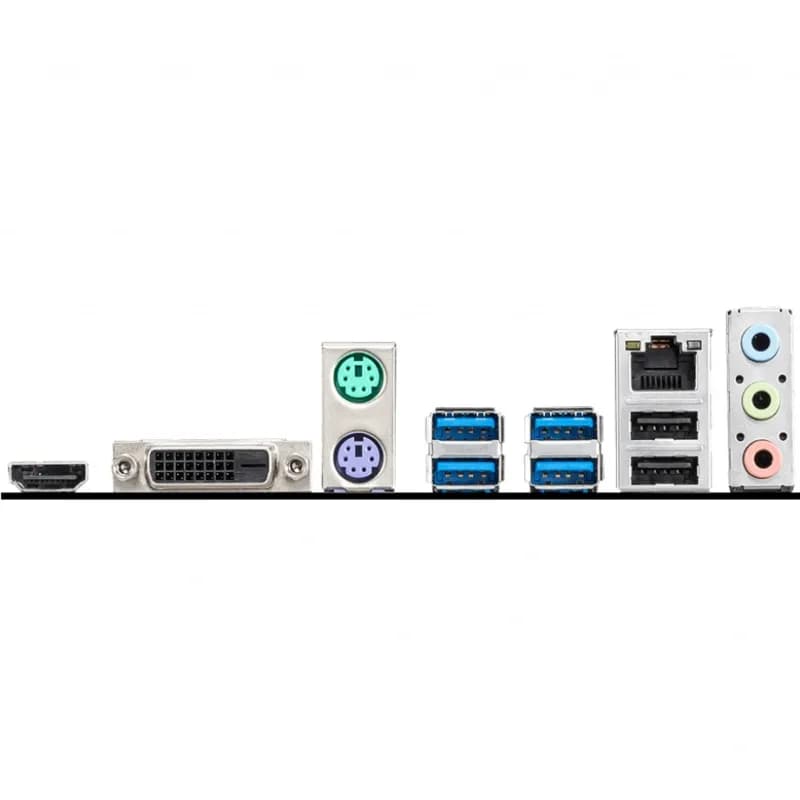

Connector & Ports

HDMI1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz

DVI-D (s)1x DVI-D port, maximum resolution of 1920x1200@60Hz

USB (s)AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN Port (s)1x Realtek RTL8111H Gigabit LAN controller

Supported StorageAMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

AudioRealtek ALC892 Codec 7.1-Channel High Definition Audio

Internal I/O Ports1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper

TPM (Trusted Platform Module )1xTPM module connector

Others

Special FeaturesRAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Warranty Information

Manufacturing Warranty03 Years Warranty
