MSI

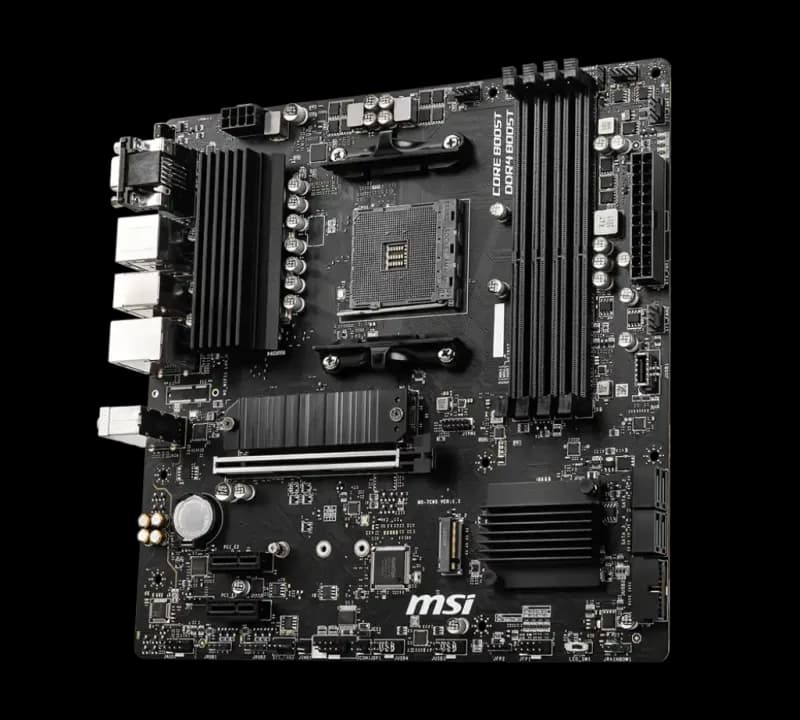

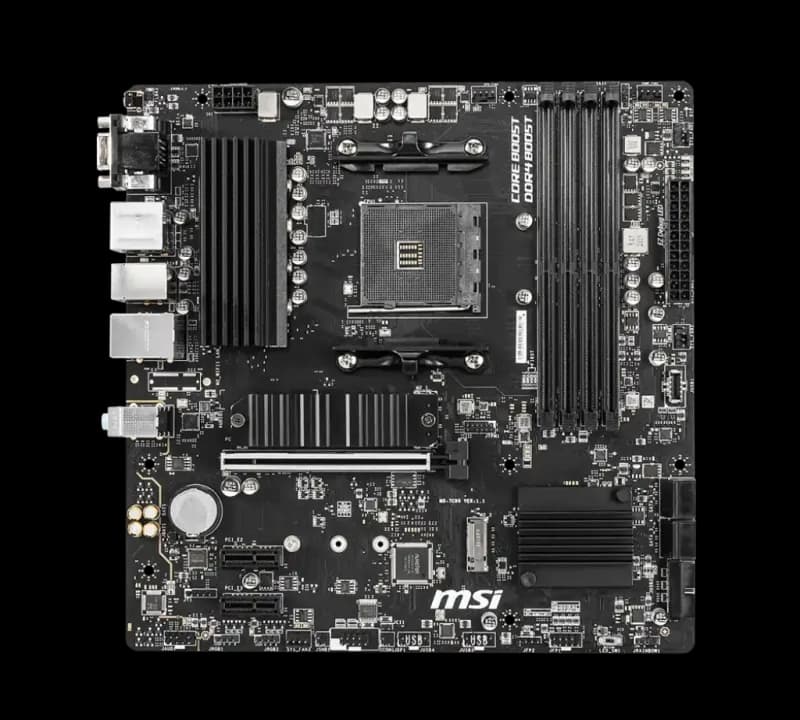

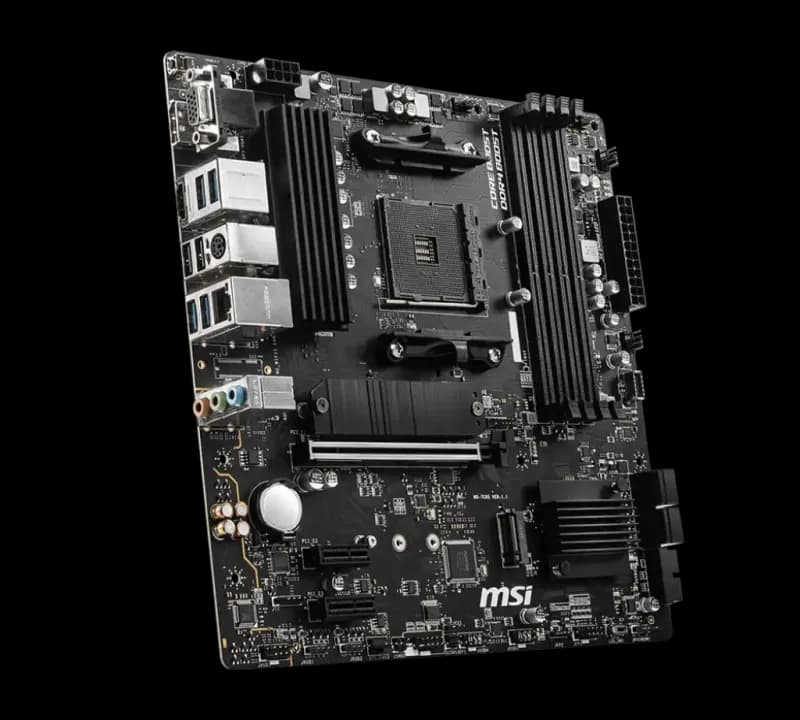

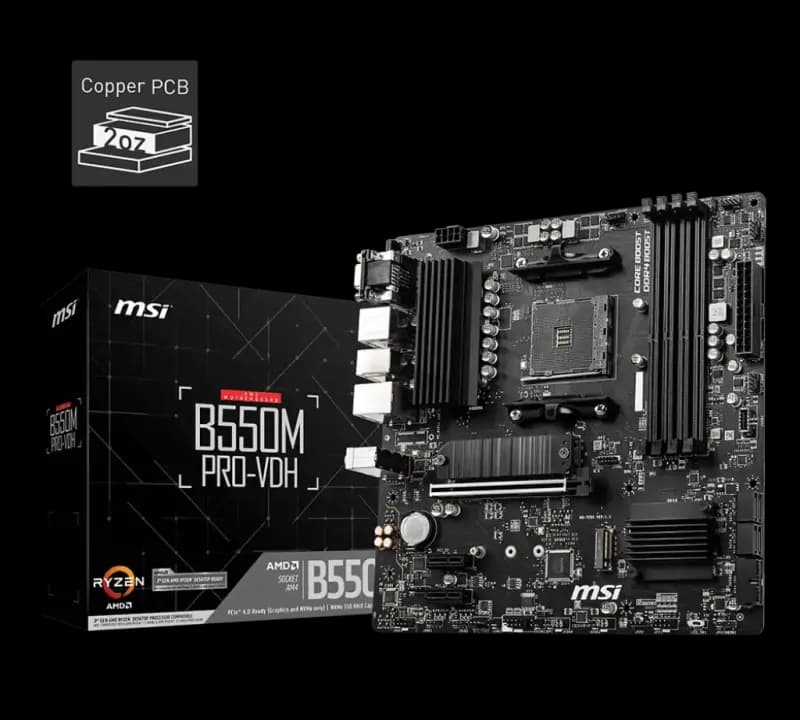

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: B550M Pro-VDH
Supports AMD Ryzen 5000 & 3000 Series Processors
PCB with 2OZ Thickened Copper
Supports DDR4 Memory, up to 4400(OC) MHz
PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

৳ 14,200

Call for stock

Basic Information

Supported CPUSupports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

ChipsetAMD B550

Form FactorMicro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Expansion Slots

PCI1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots

M.2 Socket2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices

Memory

TypeDual-channel memory architecture

Slots4x DDR4 memory slots

Supported MemorySupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory

Maximum Memory128GB

Graphics

Graphics1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Max Shared Memory16GB

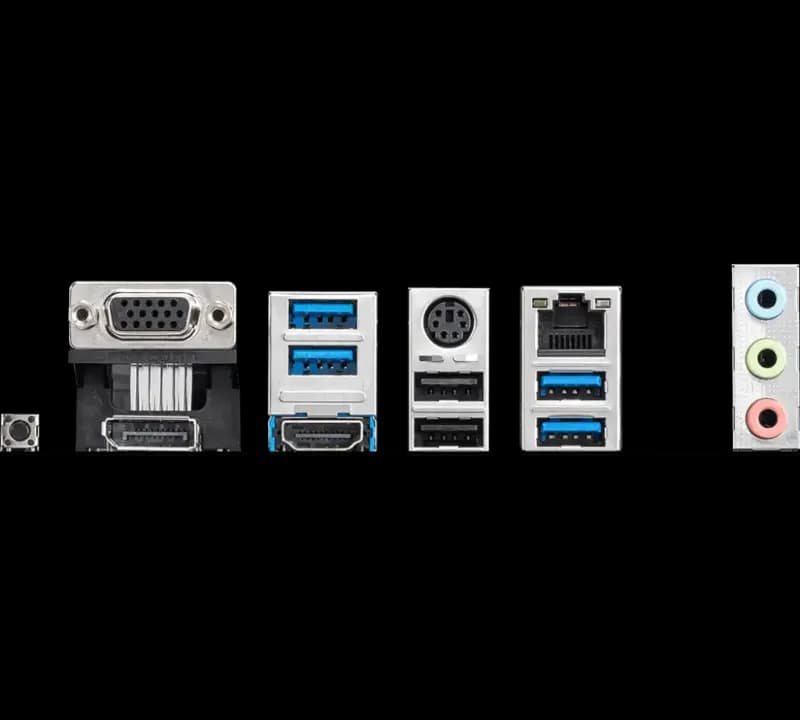

Connector & Ports

HDMI1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Display Port (s)1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz

USB (s)AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN Port (s)1x Realtek 8111HN Gigabit LAN controller

Supported StorageAMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices

AudioRealtek ALC892 Codec 7.1-Channel High Definition Audio

Internal I/O Ports1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper

TPM (Trusted Platform Module )1 x TPM module connector

Warranty Information

Manufacturing Warranty03 Years Warranty
