MSI

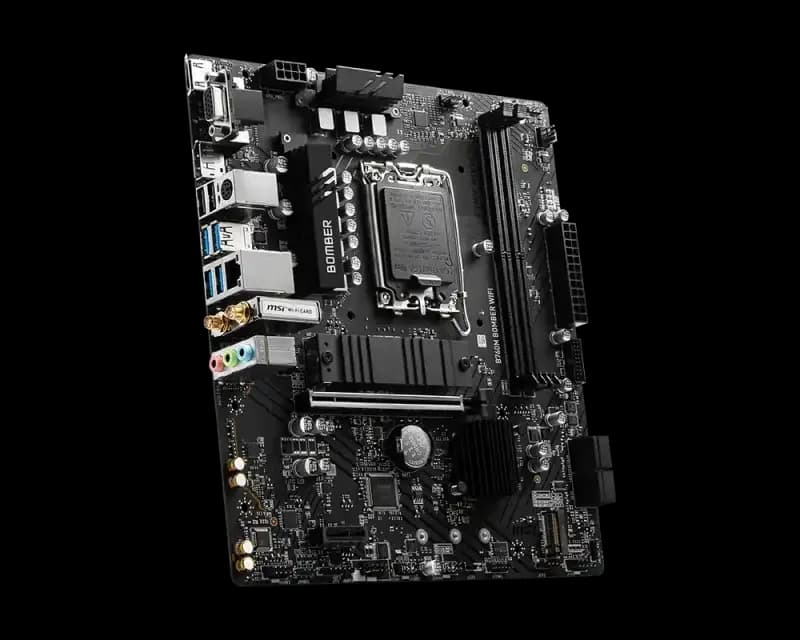

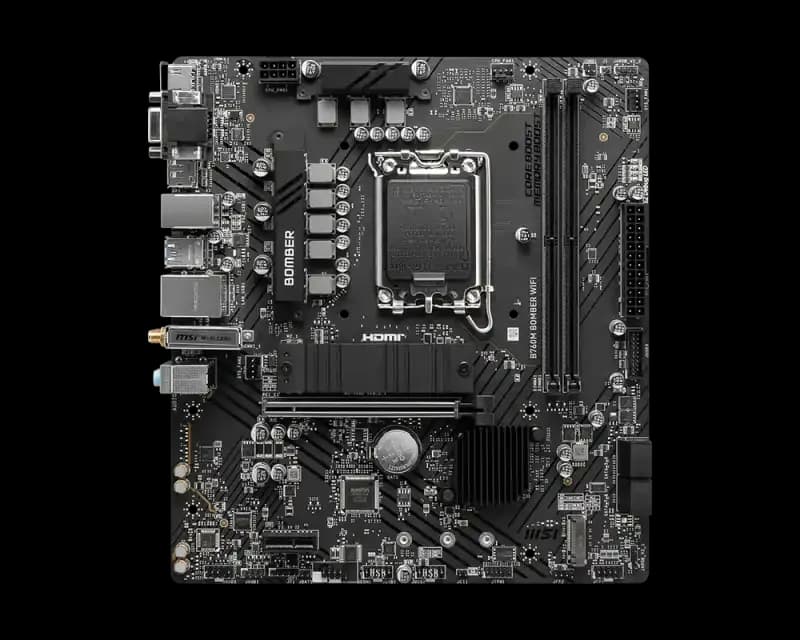

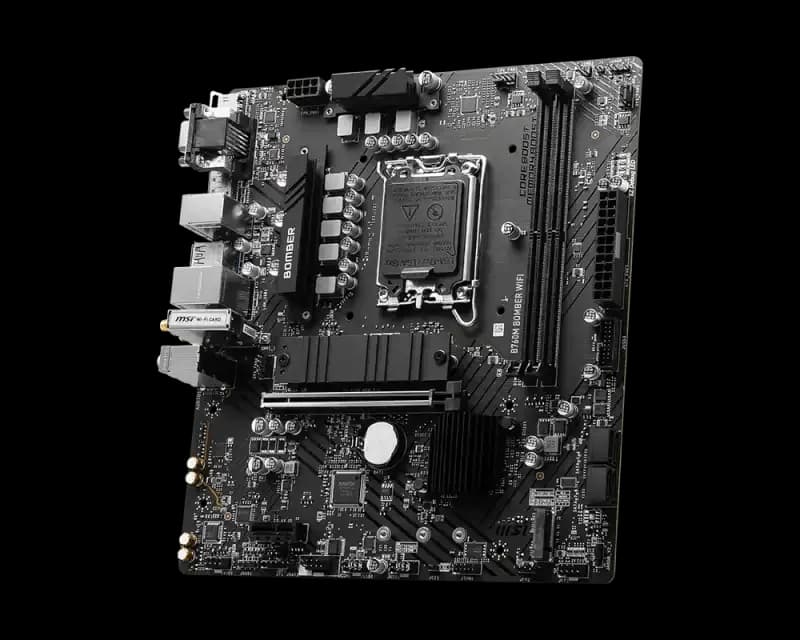

MSI B760M BOMBER WIFI mATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: B760M BOMBER WIFI
Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E

৳ 18,500

Call for stock

Basic Information

Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700

ChipsetINTEL B760

Form FactormATX 220mmx243.84mm

AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

TypeDDR5

Slots2

Supported MemoryMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Maximum Memory96GB

Graphics

Graphics1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

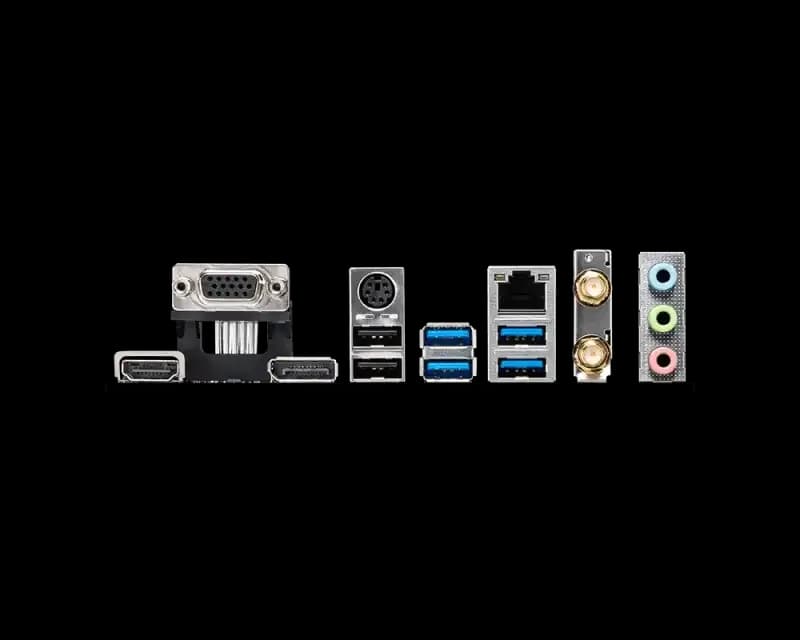

Connector & Ports

HDMI1x HDMI

Display Port (s)1x DisplayPort

D-Sub (s)1x D-Sub

USB (s)2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)Realtek RTL8125B 2.5Gbps LAN

Wireless Communication moduleIntel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA

Supported Storage2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Internal I/O Ports1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Others

Special Features4x EZ Debug LED

Warranty Information

Manufacturing Warranty3 years
