MSI

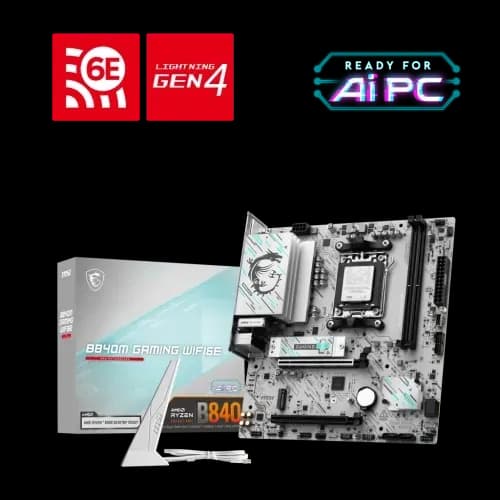

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: B840M GAMING WIFI6E
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 8000 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

৳ 19,400

Call for stock

Basic Information

Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

ChipsetAMD B840

BIOSFlash BIOS Button

Form FactormATX 226mmx243.84mm

AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

M.2 Socket2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Memory

TypeDDR5

Slots2 x UDIMM

Supported MemoryMemory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only

Maximum Memory128GB

Graphics

Graphics1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI1x HDMI 2.1

Display Port (s)1x DisplayPort 1.4

USB (s)2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)

LAN Port (s)Realtek 8125D 2.5G LAN

Wireless Communication moduleWi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA

Supported Storage2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Audio1x Front Audio (JAUD)

Internal I/O Ports1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Others

Special Features4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty3 Years Warranty
