MSI

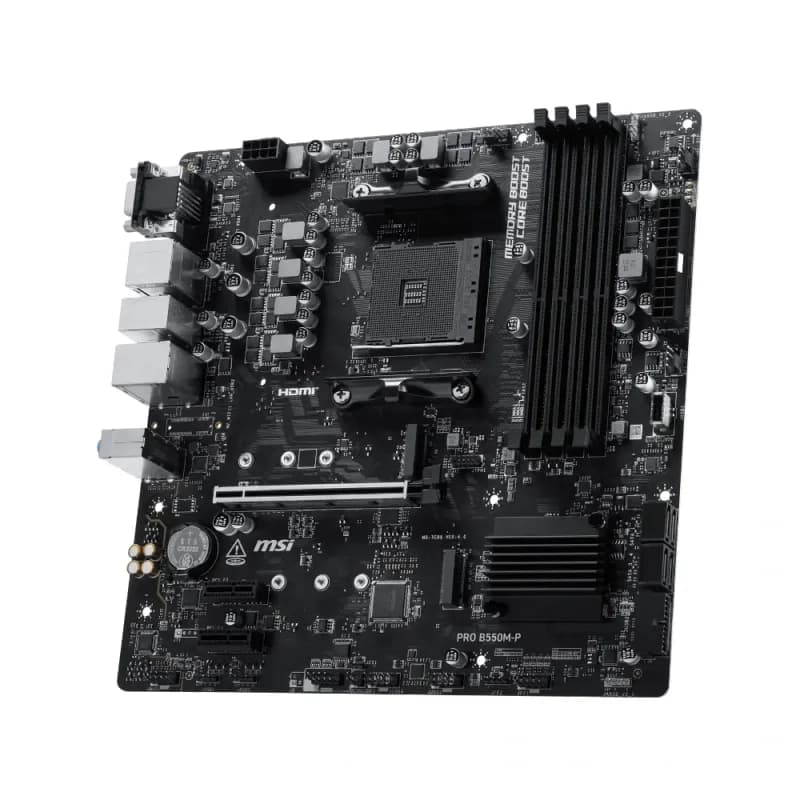

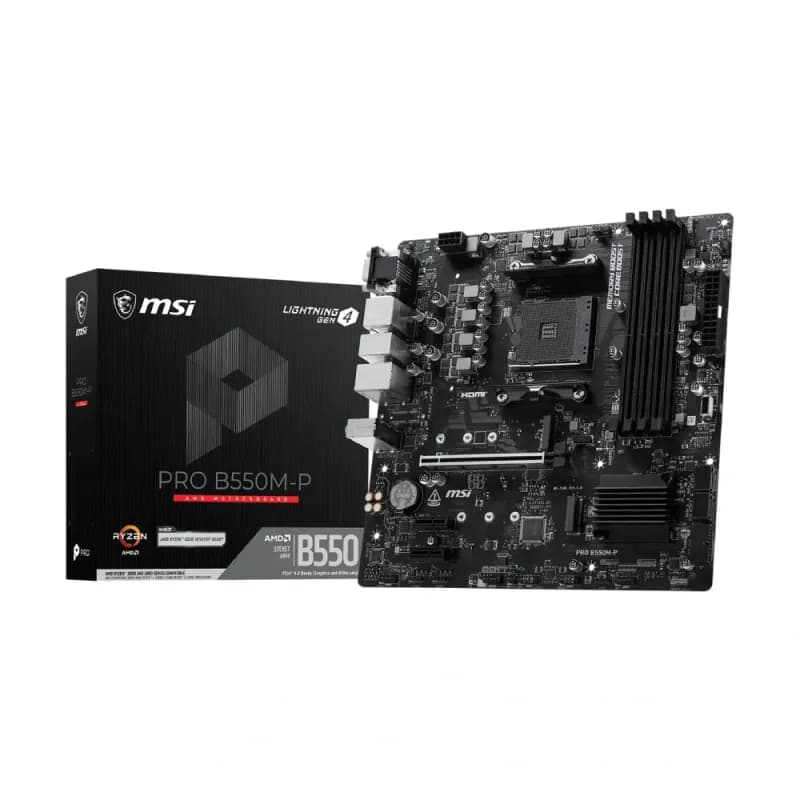

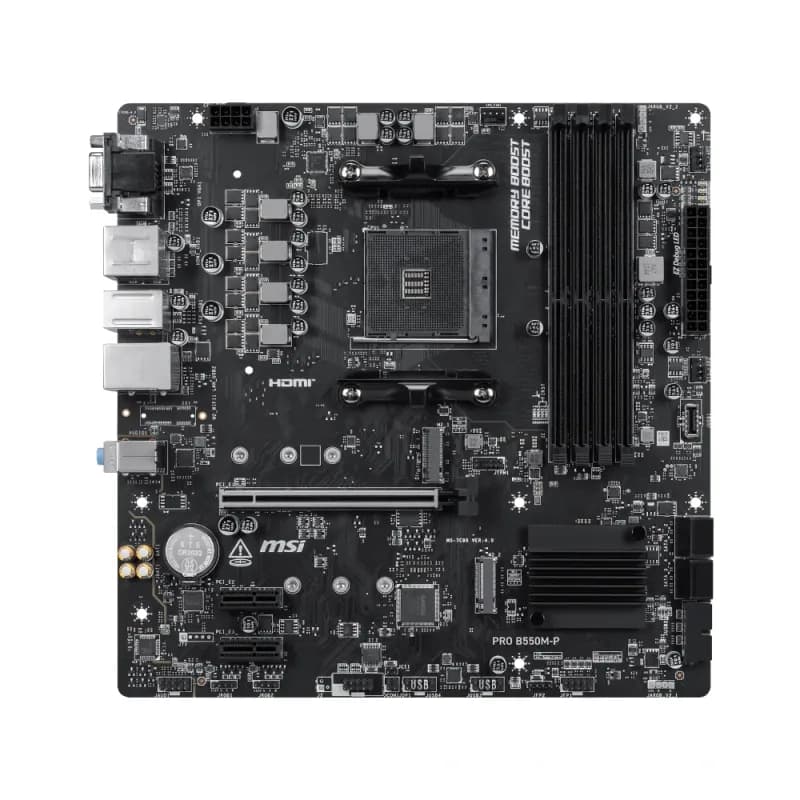

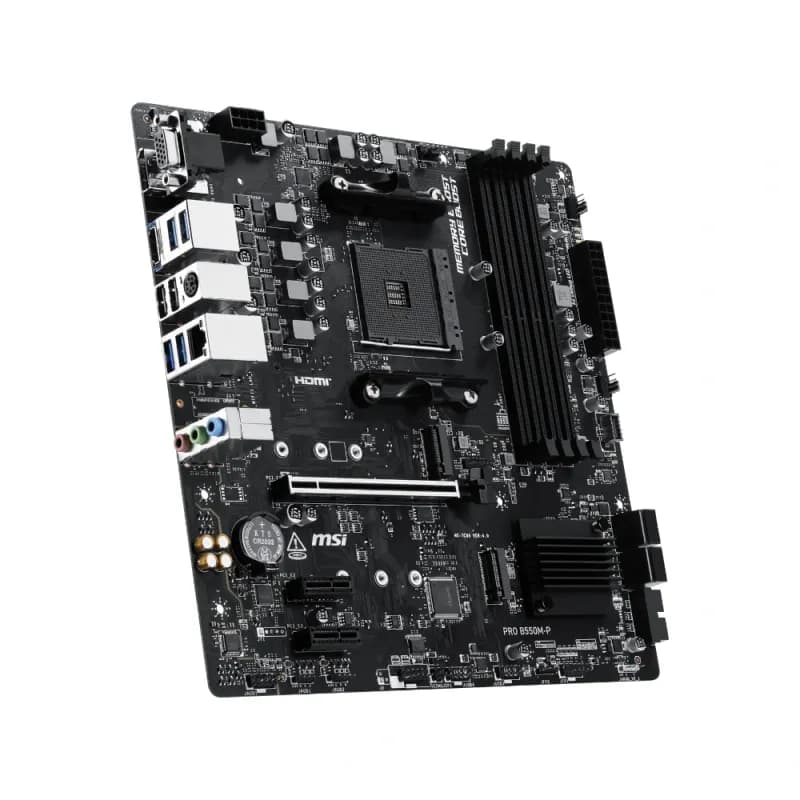

MSI PRO B550M-P AMD AM4 mATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: PRO B550M-P
Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series (AM4)
Supported RAM: 4x DDR4 Slots, Max 128GB, Up to 4400+ MHz (OC)
Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
Features: 2x M.2 Slot, Realtek RTL8111H 1Gbps LAN

৳ 14,400

Call for stock

Basic Information

Supported CPUSupports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4

ChipsetAMD B550

Form FactormATX 243.84mmx243.84mm

AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

M.2 Socket2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

Memory

TypeDDR4

Slots4x DDR4

Supported MemoryMemory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode

Maximum MemoryUp to 128GB

Graphics

Graphics1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

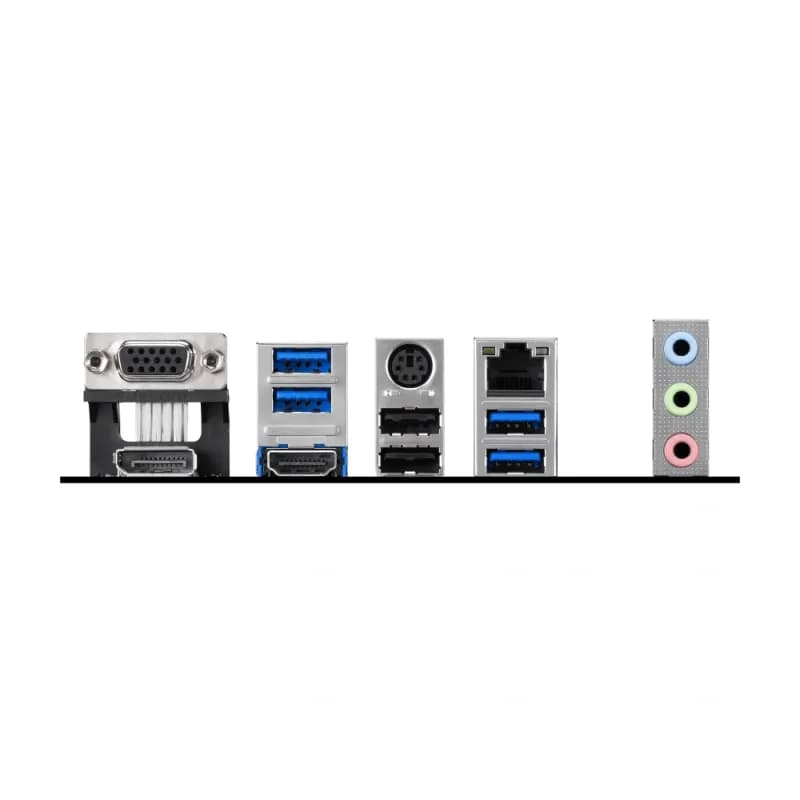

Connector & Ports

HDMI1x HDMI 2.1

Display Port (s)1x DisplayPort 1.4

VGA (s)1x VGA

USB (s)2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)

LAN Port (s)Realtek RTL8111H 1Gbps LAN

Supported Storage2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G

RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Audio1x Front Audio (JAUD)

Internal I/O Ports1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Others

Special Features4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit

Warranty Information

Manufacturing Warranty3 Years
