Asus

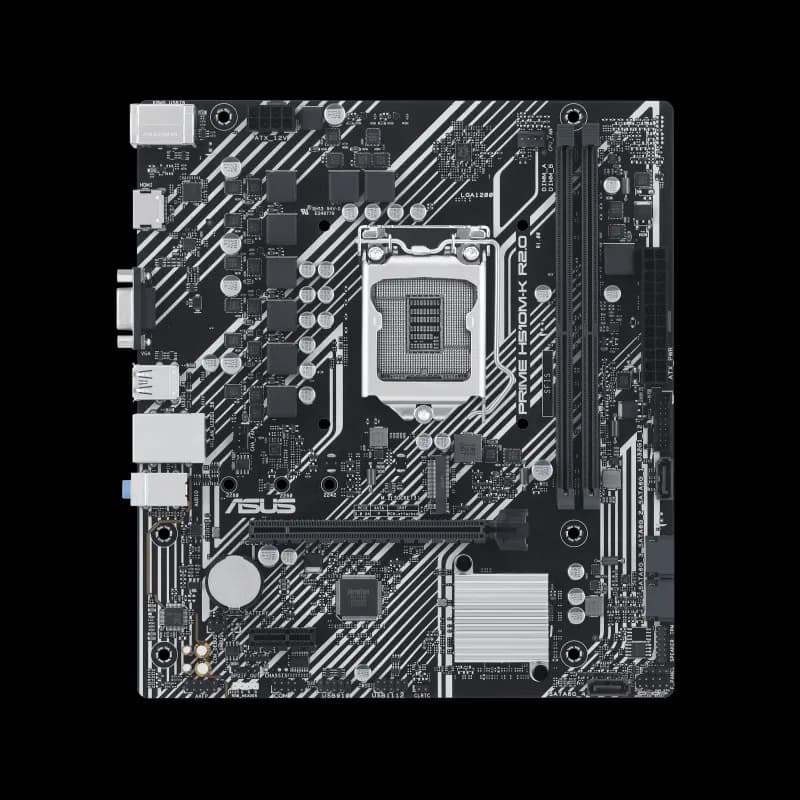

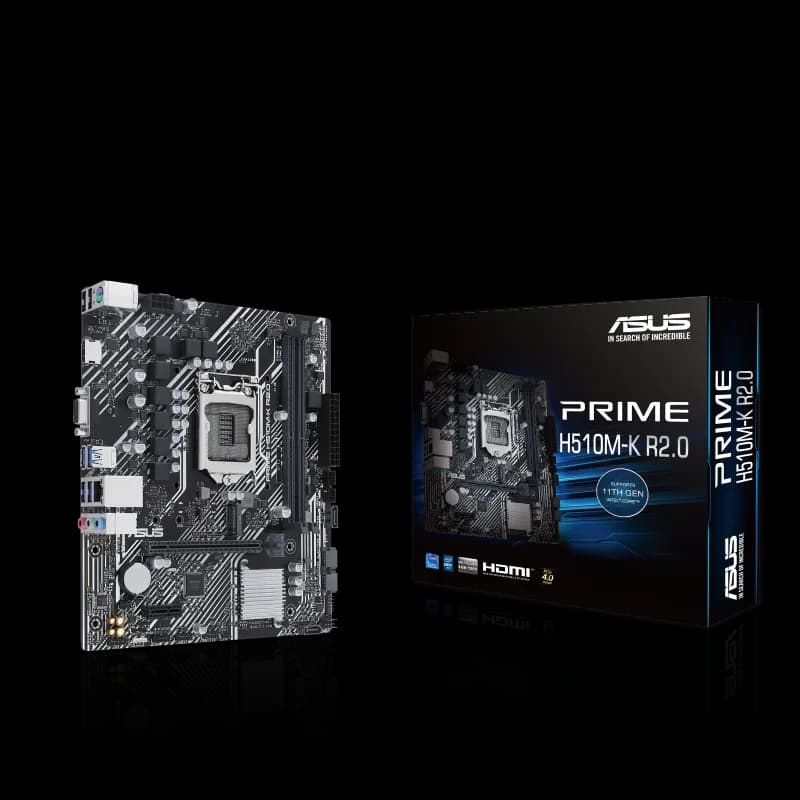

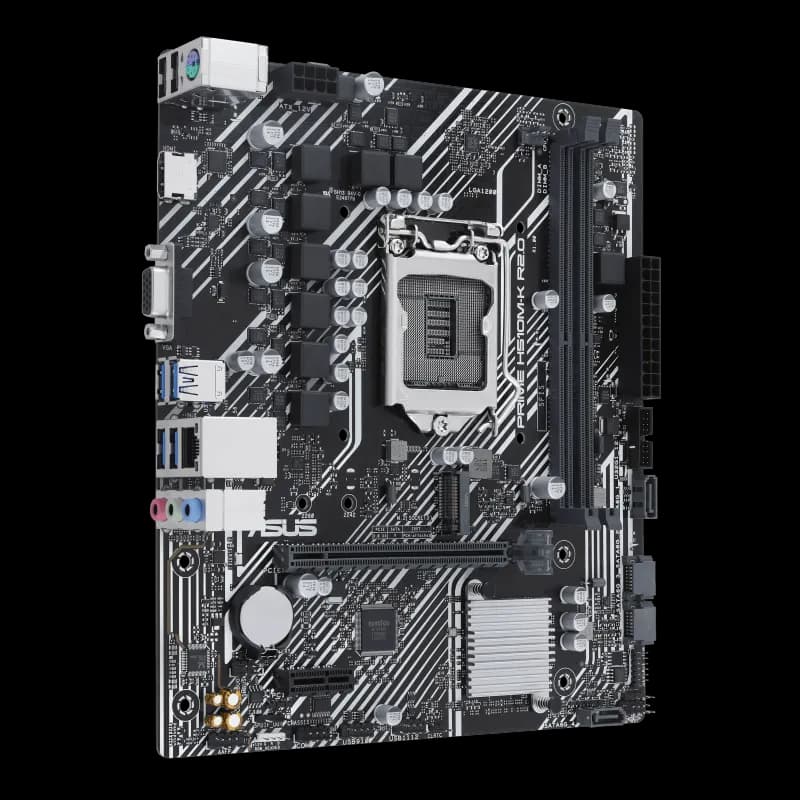

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: PRIME H510M-K R2.0
Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Graphics Output: 1x HDMI port, 1x VGA port
Features: 1 x Realtek 1Gb Ethernet

৳ 10,700

Call for stock

Basic Information

Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

ChipsetIntel H470 Chipset

BIOS128 Mb Flash ROM, UEFI AMI BIOS

Form Factormicro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

Expansion Slots

PCIIntel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot

M.2 SocketTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Memory

TypeDDR4

Slots2 x DIMM

Supported MemoryDDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)

Maximum MemoryMax. 64GB

Graphics

GraphicsOnly Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Connector & Ports

HDMI1x HDMI 1.4

VGA (s)1x VGA port

USB (s)Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

LAN Port (s)1 x Realtek 1Gb Ethernet port

Supported StorageTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Internal I/O PortsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)

Others

Special FeaturesASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header

Warranty Information

Manufacturing Warranty3 years
