AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
TypeDDR5
Slots2
Supported MemoryMemory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory96GB
Graphics
Graphics1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI1x HDMI
Display Port (s)1x VGA

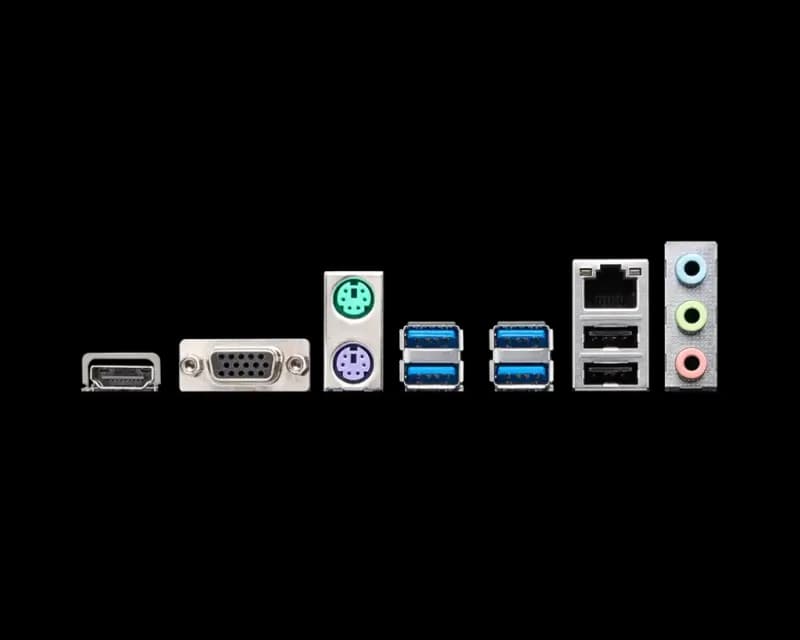

USB (s)2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)Realtek RTL8111H Gigabit LAN
Supported Storage1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
