MSI

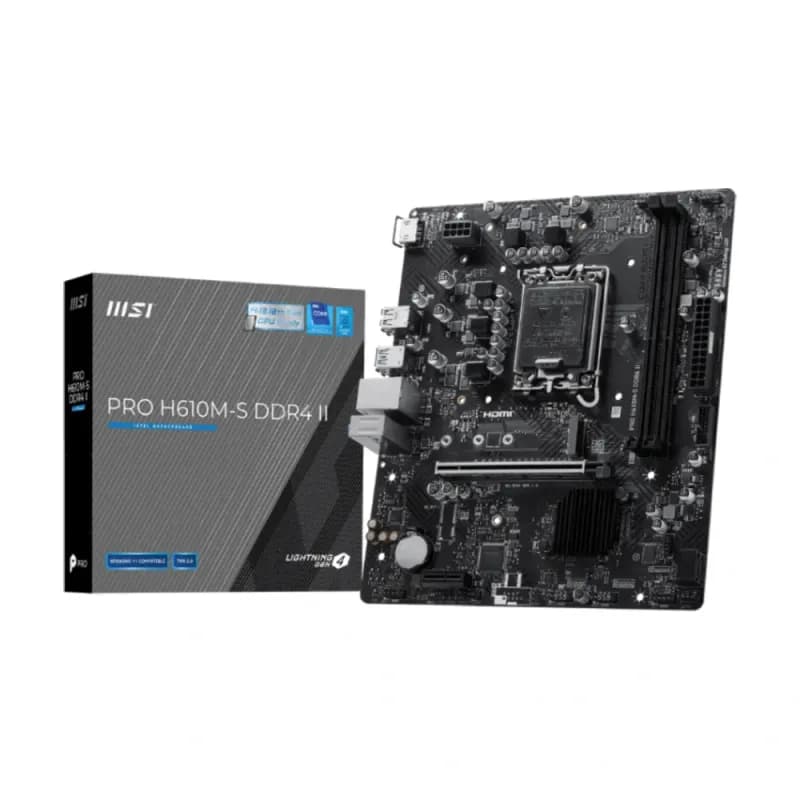

MSI PRO H610M-S DDR4 II mATX Motherboard

0.0

(0 Verified Reviews)

Key Features

Model: PRO H610M-S DDR4 II
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 3200 MHz
Graphics Output: 2x HDMI 1.4 with HDR
Features: 1x M.2, Realtek RTL8111H Gigabit LAN

৳ 10,200

Call for stock

Basic Information

Supported CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700

ChipsetINTEL H610

Form FactormATX 200mmx236.16mm

AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

M.2 Socket1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

Memory

TypeDDR4

Slots2

Supported MemoryMemory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory

Maximum Memory64GB

Graphics

Graphics1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz

Connector & Ports

HDMI1x HDMI 1.4

USB (s)1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

LAN Port (s)Realtek RTL8111H Gigabit LAN

Supported Storage1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G

Audio1x Front Audio (JAUD)

Internal I/O Ports1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)

Others

Special Features4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit

Warranty Information

Manufacturing Warranty3 years
